- Outside Diameter of the Tubing (OD): 1-3/4" (44.5 mm)
- Minimum Wall Thickness (DOM): 0.065” (1.7 mm)
- Minimum Wall Thickness (4130): 0.065” (1.7 mm)
- Minimum Wall Thickness (ERW): 0.083” (2.1 mm)
- Minimum Wall Thickness (Stainless): Contact for Details
- Minimum Wall Thickness (Aluminum): Contact for Details
- Minimum Wall Thickness (Other): Contact for Details
- Maximum Wall Thickness: 0.134” (3.4 mm)
- Centerline Radius: 7" (177.8 mm)
- Maximum Degree of Bend: 90, after springback
- Maximum Ovality: <10%, depending on the type, grade, and quality of the material

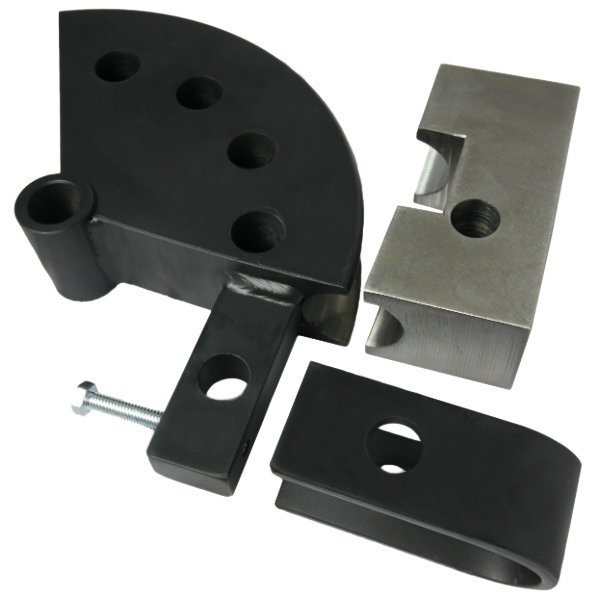

Fits:
- Steel Main Die
- Steel Backing Block
- Steel U-Strap
