Can-Am Defender Snorkel Guide: Benefits, Installation, Sealing Tips & Maintenance

Aug 21st 2025

If you play in deep water, sticky mud, or dusty ranch roads, a snorkel isn’t a vanity mod—it’s cheap insurance for your Can-Am Defender’s engine and CVT. Here’s everything you need to know, from choosing the right kit to installation, sealing, and maintenance.

What a Snorkel Does (and What It Doesn’t)

Purpose:

Raises intake points for the engine and CVT (belt) to cleaner, drier air.
Reduces hydro-lock risk and belt slippage during crossings.
Improves filter life in dusty environments.

Common misconception:
A snorkel doesn’t make your Defender submarine-proof. You still must protect electrical connections, vent lines, and seals, and you should never exceed safe depth (more on that below).

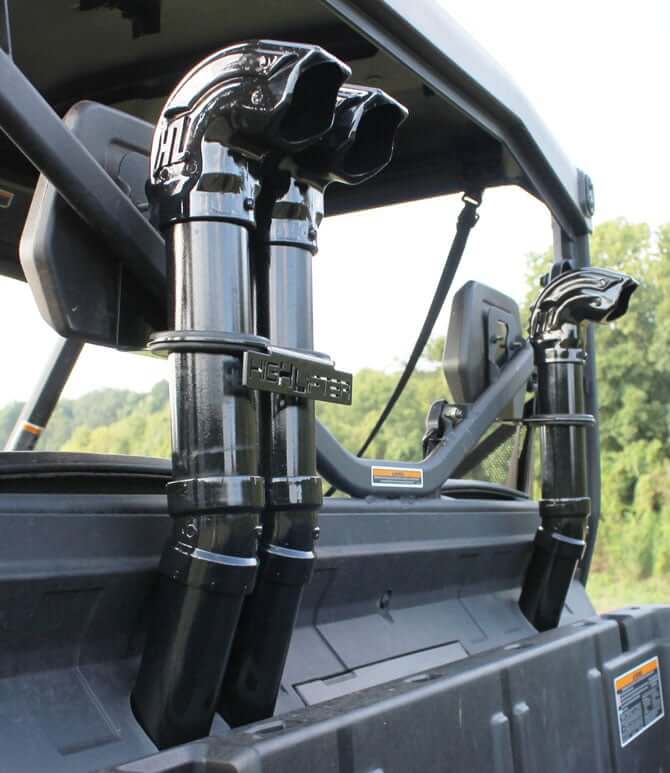

Snorkel Types for the Defender

Air Intake Snorkel: Feeds the engine clean air above the splash zone.
CVT Intake & Exhaust Snorkels: Keep belt intake and belt exhaust high and dry so the clutch can breathe and expel heat.
Vent Line Extensions (often included or added): Raise the vents for the front/rear differentials, gearbox/transmission, and fuel tank to prevent water intrusion.

Head styles:

Ram head: Slightly pressurizes at speed; sheds rain well.
Pre-filter/cyclone head: Spins out debris and water; great for heavy dust/mud.
Stacked or low-profile caps: Cleaner look; adequate for moderate splash.

Pros & Cons

Pros

Safeguards expensive components (engine, CVT, diffs).
Expands where you can ride—deeper ruts, water, gumbo mud.
Cleaner air intake in dust; less filter clogging.

Trade-offs

Added intake restriction if poorly designed or installed.
More intake noise at the snorkel head.
Requires careful sealing and periodic inspection.
May impact warranty claims if water-related damage occurs—keep receipts and photos of proper installation.

Choosing a Snorkel Kit

Model fitment: Confirm exact year/trim (HD5/7/8/9/10, cab variants, MAX, Limited).
Full CVT coverage: Look for engine intake + CVT intake + CVT exhaust as a matched set.
Routing & serviceability: Smooth bends, accessible filter service, robust mounting brackets.
Sealing system: Quality grommets, molded adapters, and clear instructions for airbox/CVT box sealing.
Material: UV-stable plastics or coated aluminum; stainless hardware.
Head options: Compatible with ram or pre-filter heads; easy to swap.
Support: Good documentation, labeled parts, and responsive tech help.

Tools & Supplies You’ll Need

Socket set & wrenches (metric), nut drivers
Drill/step bit, hole saw (per kit template)
Panel clip tool, trim pry tools
Screwdrivers (flat/Phillips), Torx bits (common on Can-Am)
Deburring tool or sandpaper
Sealants: Marine-grade RTV silicone, dielectric grease for connectors
Tape: High-quality electrical and Tesa/cloth harness tape
Clamps: Stainless worm-gear or T-bolt, per kit spec
Rubbing alcohol & clean rags
Zip ties, heat-shrink tubing
Paint pen/marker, measuring tape

Tip: Have a torque wrench handy and follow the kit’s torque values where specified.

Pre-Install Checklist

Clean machine: Mud hides leaks and surfaces that need sealant.
Battery disconnect: Safety first.
Take reference photos: Routing and factory connections.
Mock-up: Lay out parts and compare to the manual; identify left/right and intake/exhaust.
Plan your routing: Avoid sharp bends, hot exhaust, and pinch points with dump beds or tilting cabs.

Step-by-Step Installation Overview

Always default to the specific instructions in your kit. The flow below matches most Defender snorkel installs.

1) Disassemble

Remove seats, center console panels, inner bed panels as needed for access.
Open the airbox and CVT housing areas.

2) Seal the Airbox & CVT Housings

Inspect all mating surfaces for gaps or casting seams.
Apply marine-grade RTV where the manual specifies (don’t glob everywhere; neat, continuous beads).
Replace any questionable gaskets; ensure CVT cover is true and latches evenly.

3) Install Bulkheads & Adapters

Drill per template and deburr the holes.
Fit grommets/bulkheads; test-seat adapters dry before sealant.
Apply RTV sparingly on the exterior side if required; clamp per instructions.

4) Route the Snorkel Tubes

Engine intake: Smooth, rising path to reduce pooling.
CVT intake: Short, direct path; avoid heat.
CVT exhaust: Keep elevation close to intake height to minimize water entry.
Secure with clamps and P-clamps/zip ties; ensure suspension/bed movement won’t chafe hoses.

5) Extend Vent Lines

Locate front/rear diff, transmission/gearbox, and fuel tank vents.
Splice with fuel-rated hose, route upward to the snorkel stack area, and terminate with a loop or small filter cap.
Avoid kinks and keep ends above max waterline.

6) Address Electrical & Intake Joints

Coat connector pins with dielectric grease; re-seat until they click.
Wrap exposed harness splits with cloth tape; secure away from sharp edges.
Verify every union—airbox lid, CVT cover, adapters, couplers—is fully seated and clamped.

7) Fit the Snorkel Heads

Install ram or pre-filter heads facing forward (ram) or as recommended.
Ensure heads are higher than your intended crossing depth.

8) Reassemble & Test

Reinstall interior/bed panels carefully around snorkel penetrations.
Start the engine; check for abnormal intake whistle or CVT resonance.
Leak test: With the engine idling, lightly mist soapy water around joints; look for suck-in or bubbles.
With the machine in neutral and wheels chocked, gently rev to confirm CVT airflow.

Post-Install Best Practices

Cure time: Let RTV cure per label before submerging.
Baseline filter: Start with a fresh engine air filter and inspect after your first ride.
Belt health: Carry a spare CVT belt; water + slipping accelerates wear.
Spare clamps & tape: Keep them in your tool bag for trailside fixes.

How Deep Can You Go?

A safe rule: Never exceed the height of your lowest critical component, not just the snorkel head.
Consider axle/bearing seals, steering rack boots, diff breather height, starter, and electrical junctions.
Crossing moving water? Height isn’t the only risk—current can shift the machine and force water into places it wouldn’t normally go.

Riding Tips in Water & Mud

Enter slowly, maintain a steady bow wave, and avoid sudden throttle chops.
Do not stop mid-crossing; momentum helps keep water out.
If you sense belt slip, ease out and let the CVT dry with light throttle on land.

Maintenance Schedule After Snorkeling

After each wet ride:

Check engine air filter, snorkel head, and pre-filter; drain any water traps.
Inspect CVT intake/exhaust joints and listen for new noises.
Look for milky diff/gearbox oil—change immediately if contaminated.

Every 25–50 hours in wet/dusty use:
Retorque clamps, refresh dielectric grease on exposed connectors.
Inspect vent line terminations and filters.

Seasonally:
Replace worn couplers/grommets; UV and heat take a toll.

Common Mistakes to Avoid

Skipping vent lines. A snorkeled intake with low vents is a recipe for milky gear oil.
Over-sealing the CVT. It must breathe; you’re raising intake/exhaust—not hermetically sealing the box.
Tight bends & low spots. These collect water and choke airflow.
Ignoring bed clearance. Check tube clearance through full dump-bed travel.
No curing time. Fresh sealant needs time before water exposure.

Will You Need Tuning?

Most snorkel installs do not require ECU tuning on a stock Defender if the kit maintains stock-like diameter and smooth routing. If you pair a snorkel with major intake/exhaust mods or notice drivability changes (lean codes, surging), consult a tuner familiar with Can-Am mapping.

Warranty & Insurance Notes

Modifications can complicate water-ingress claims. Keep documentation, photos, and receipts showing correct installation.
If you ride commercially (ranch, outfitting), review policy language on water damage and aftermarket parts.

Cost & Time

Kits: Typically $250–$800+ depending on materials and whether vent line components are included.
DIY time: 3–6 hours for a careful first-timer; more if you tidy wiring and reroute vents neatly.
Shop install: Expect 3–5 billable hours plus fluids if contamination is found.

FAQs

Will a snorkel void my warranty?
Not automatically. But water damage claims may be scrutinized. Keep records and install correctly.

Can I run only an engine snorkel?
You can, but you risk CVT belt slip and water ingestion. On a Defender, do engine + CVT intake + CVT exhaust at minimum.

Do I still need dielectric grease and vent lines if I snorkel?
Yes. Snorkels protect intakes; vents/electrical are separate ingress paths.

What head should I use?

Ram head for mixed use and rain.
Pre-filter/cyclone for heavy dust and mud; they reduce filter loading.

How often should I check the belt after water rides?
Inspect after every wet ride until you’re confident in your sealing and routing. Carry a spare.

Final Thoughts

A well-designed, properly installed snorkel system turns the Can-Am Defender into a far more capable workhorse and trail buddy—without compromising reliability. Do it once, do it right: seal the boxes, route the tubes cleanly, extend the vents, and maintain it like you mean it.
