Experience a unique “bottomless” ride feel that’s comfortable, controlled, and race-ready with BILSTEIN Black Hawk Powersports for direct-fit UTV applications. For the first time, BILSTEIN’s patented two stage, externally adjustable Zone Control jounce cut-off system is available for the powersports market.

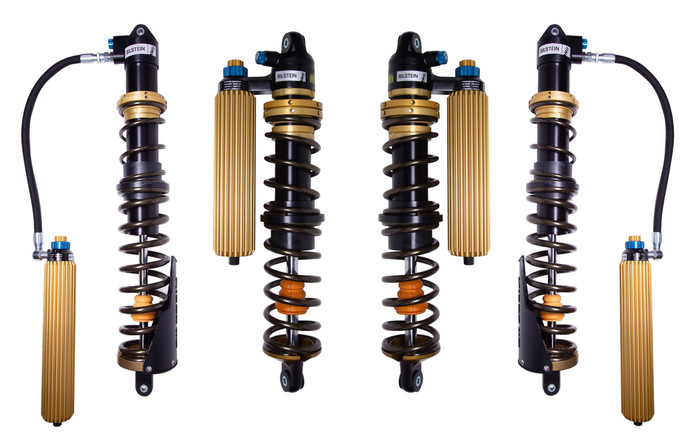

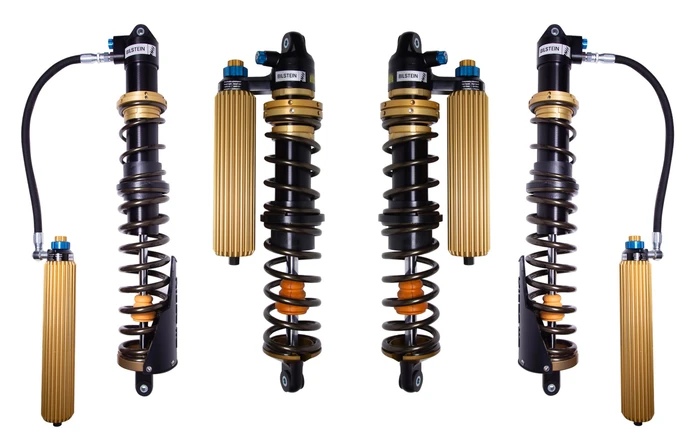

Bilstein Black Hawk Powersports UTV Shocks
Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your Polaris RZR XP 1000. These direct fit shock and coil spring assemblies offer position-sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein's patented ZoneControl position-sensitive technology that contains five independently tuned damping zones—three compression and two rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine-tune bottom-out control. For rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap.
Black Hawk Powersports offer four unique external adjustments: high/low speed compression, rebound, and JCO—all easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk Powersports feature an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to be race-ready right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom-out control. Experience a unique "bottomless" ride with Bilstein's new Black Hawk Powersports coilover packages, available separately for front and rear applications.
Features & Benefits
What is ZoneControl® CR?
ZoneControl® CR delivers position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons. Three key internal features produce ZoneControl® CR:
• Externally adjustable JCO internal bump stop.
• Triple Piston Design
• RCO System
Keep it Cool
In addition to a killer aesthetic, BILSTEIN’s aluminium finned reservoir design also provides many functional benefits. Fins extending out from the reservoir pull heat away and allow air to flow through the channels. This significantly increases cooling and fade resistance. The fins also act as an added barrier, protecting the reservoir body from potential damage caused by rocky debris.
