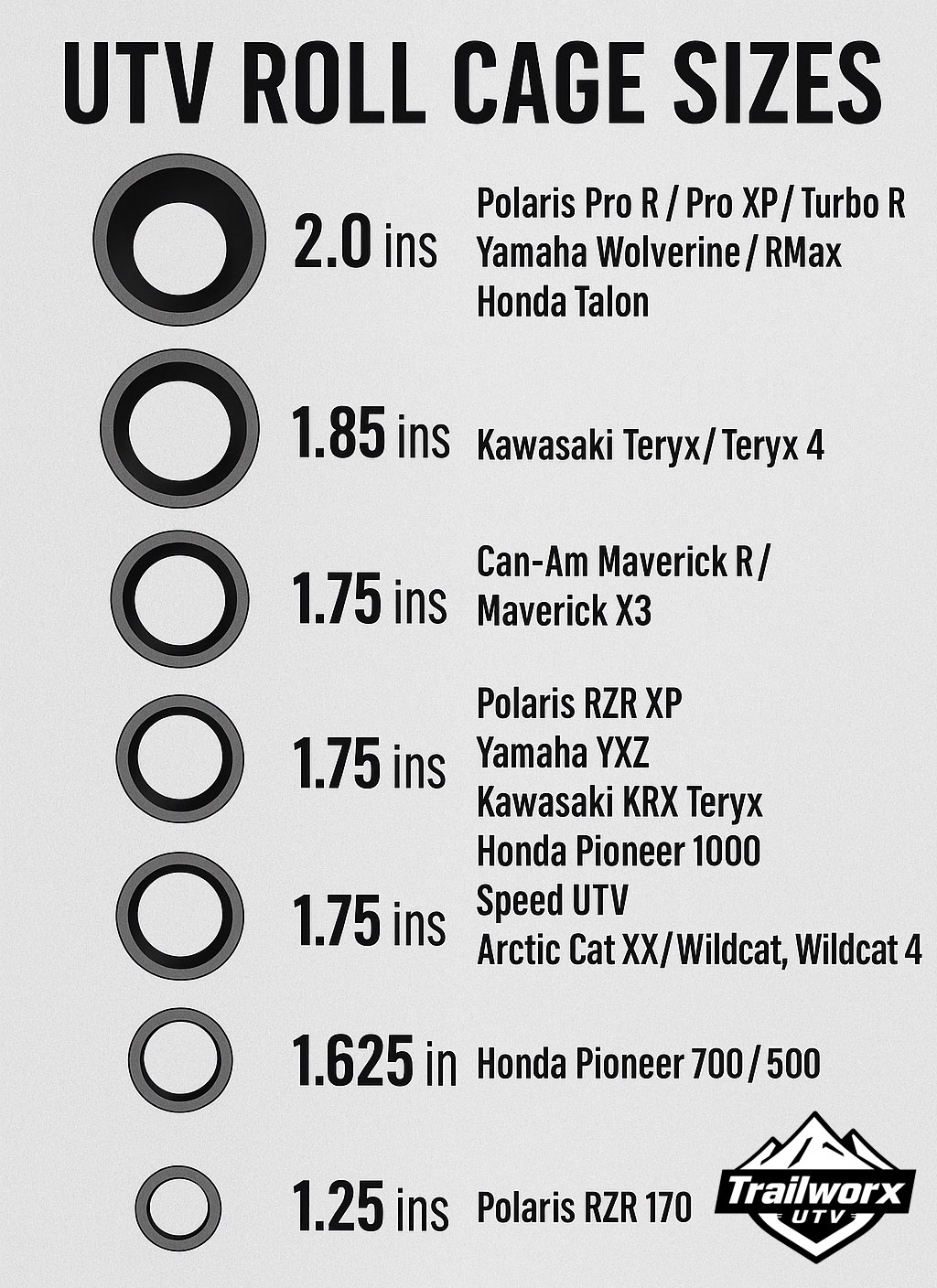

UTV Roll Cage Tube Diameter Sizes by Manufacturer
2 minute read
Audio generated by DropInBlog's Blog Voice AI™ may have slight pronunciation nuances. Learn more
Polaris
| Model/Series |
Perimeter Tubing |
Crossbars / Notes |
| Pro R / Pro XP / Turbo R |
2.0″ |
Top front crossbar: 1.75″ |
| RZR XP (2 & 4 seat) |
1.75″ |
B pillar: 1.25″; C/D pillars: 1.75″ |
| RZR Trail |
1.75″ |
|
| RZR 170 |
1.25″ |
|
| RZR 200 |
1.5″ |
|
| General / Ranger / Crew |
Pro-Fit (non-round) |
Use PF-IN/PF-OUT clamps; Rear harness bar: 1.75″; 9″ bolt-on mirror recommended |
| Expedition |
Profile cage |
Use FS clamps (requires drilling) |
| Older RZR (pre-2014) |
1.75″ |
Rear harness bar: 1.5″; 4-seat rear top crossbar: 1.25″ |
Polaris
| Model/Series |
Perimeter Tubing |
Crossbars / Notes |
| Pro R / Pro XP / Turbo R |
2.0″ |
Top front crossbar: 1.75″ |
| RZR XP (2 & 4 seat) |
1.75″ |
B pillar: 1.25″; C/D pillars: 1.75″ |
| RZR Trail |
1.75″ |
|
| RZR 170 |
1.25″ |
|
| RZR 200 |
1.5″ |
|
| General / Ranger / Crew |
Pro Fit (non-round) |
Use PF-IN/PF-OUT clamps; rear harness bar: 1.75″; 9″ bolt-on mirror recommended |
| Expedition |
Profile cage |
Use FS clamps (requires drilling) |
| Older RZR (pre-2014) |
1.75″ |
Rear harness bar: 1.5″; 4-seat rear top crossbar: 1.25″ |
Can-Am
| Model/Series |
Perimeter Tubing |
Crossbars / Notes |
| Maverick R / X3 |
1.85″ |
Some top crossbars: 1.5″; rear harness bar: 2.5″ |
| Commander (2021+) |
1.85″ |
Profile cage (non-round); use PF-IN/PF-OUT clamps |
| Commander (2020 & older) |
2.0″ |
|
| Maverick Sport & Trail |
1.85″ |
Profile cage (non-round); bumpers: 1.5″ |
| Defender |
Profile cage |
Use PF-IN/PF-OUT clamps |
Yamaha
| Model/Series |
Perimeter Tubing |
Crossbars / Notes |
| YXZ |
1.75″ |
Top crossbars: 1.5″ |
| Wolverine / RMax |
2.0″ |
Top crossbars: 1.5″ |
| Rhino |
1.75″ |
Top crossbars & steering column: 1.5″ |
| Viking / Viking 6-seater |
2.0″ |
|
Kawasaki
| Model/Series |
Perimeter Tubing |
Crossbars / Notes |
| KRX Teryx |
1.75″ |
Some top crossbars: 1.5″ |
| Teryx / Teryx 4 |
1.875″ |
Top crossbars: 1.7″ |
| Mule |
Varies |
Perimeter tubing: 1.625″, 1.75″, or 1.875″; measurement recommended |
Honda
| Model/Series |
Perimeter Tubing |
|
| Talon |
2.0″ |
|
| Pioneer 1000 |
1.75″ |
|
| Pioneer 700 / 500 / Big Red |
1.625″ |
Speed UTV
| Model/Series |
Perimeter Tubing |
Crossbars / Notes |
| All Models |
1.75″ |
B pillar: 1.5″; intrusion bars: 1.25″ |
Arctic Cat
| Model/Series |
Perimeter Tubing |
Notes |
| XX / Wildcat / Wildcat 4 |
1.75″ |
|
| Prowler |
Varies |
Requires aftermarket cage installation |
