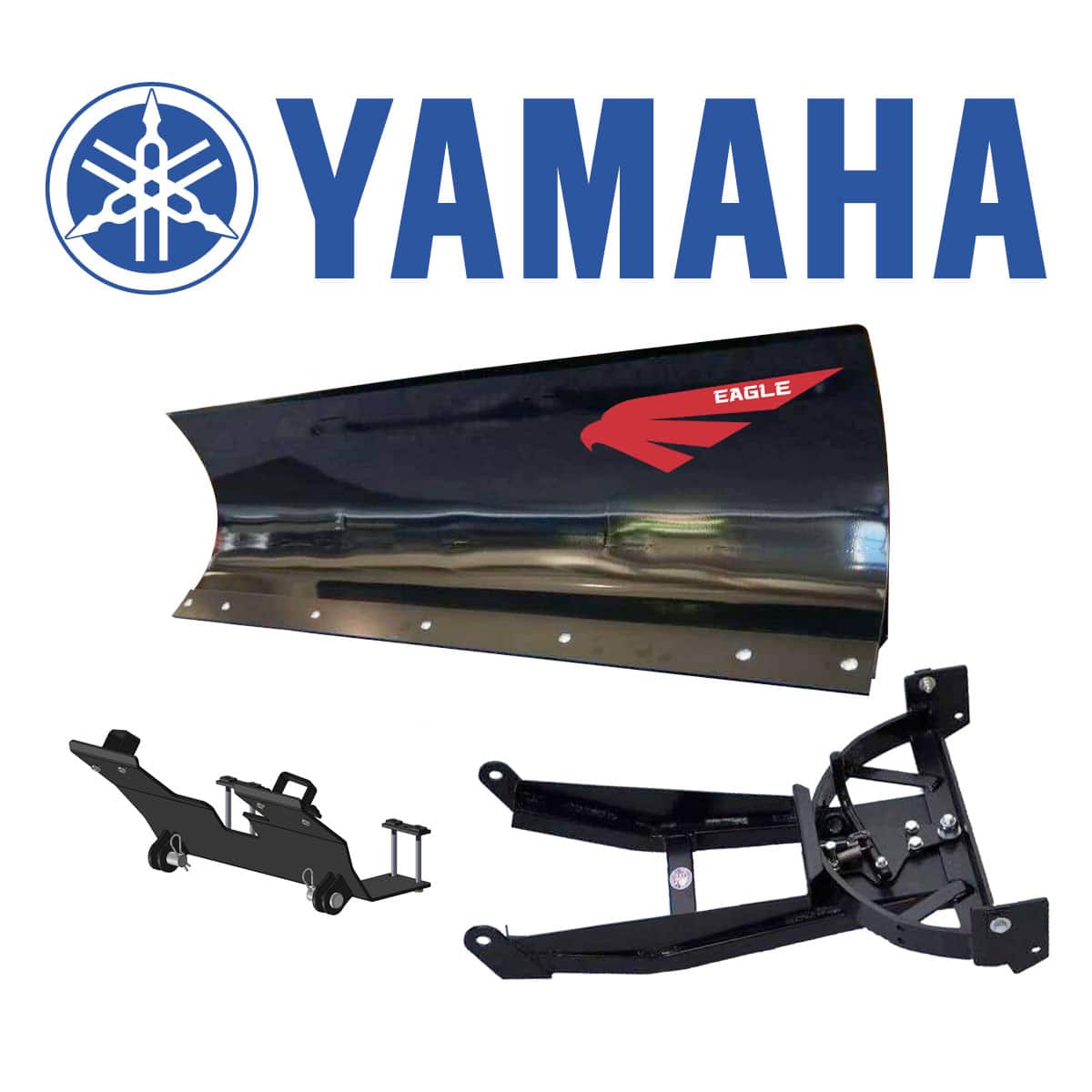

Turn your Yamaha Rhino (450, 660, or 700 models from 2004 through 2013) into a reliable snow-clearing machine with this complete 72″ snow plow system. Built for riders, ranchers, and property owners who need to move snow quickly and efficiently, this heavy-duty UTV plow kit gives you everything you need — from a wide steel blade that clears big swaths with each pass to a rugged push tube and front-mount bracket that attach securely to your Rhino’s frame.

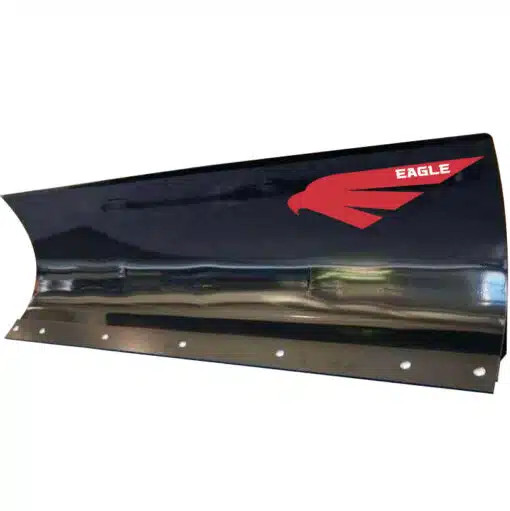

The heart of the system is a 72″ steel blade that delivers broad coverage and excellent snow-pushing performance. This straight blade is roughly 15.75″ tall and provides about 63″ of effective clearing width when angled to either side, allowing you to direct snow where you want it. A reversible wear bar maximizes the blade’s life, while adjustable skid shoes protect both the blade and the ground surface you’re clearing. Built-in trip springs and a rubber snow flap help absorb hits and reduce snow spray back toward the machine for smoother work in deeper snow.

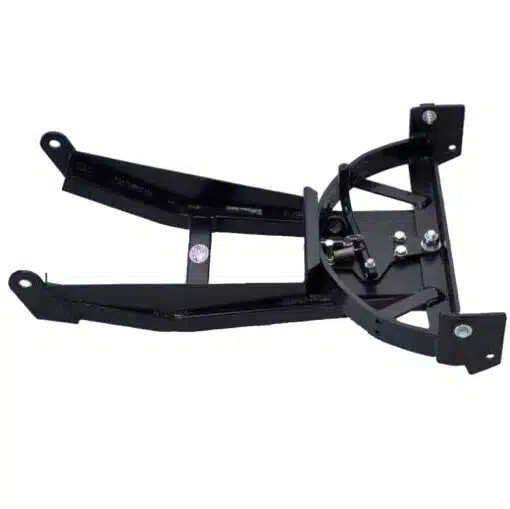

The push tube and swivel assembly are made from heavy-duty formed steel tubing with cross members and a V-shaped design for strength and durability. The swivel lets you manually rotate the blade into multiple positions (up to about 30° left or right) so you can control snow displacement on driveways, alleys, trails, or parking areas. A vehicle-specific front frame mount bolts directly to your Rhino’s frame with robust hardware and clevis pins, delivering a stable connection that handles heavy snow pushing without flexing.
Because snow plow systems use a winch to raise and lower the blade, a UTV winch (sold separately) is required to operate this kit. Once your winch is in place and the plow system is installed, your Rhino becomes a capable snow-clearing tool that saves you hours of shoveling and makes winter maintenance easier and faster.
Product Details
- Fitment: Yamaha Rhino 450, 660, and 700 UTVs — model years 2004–2013 (blade, mount, and push tube designed to fit these machines)
Blade Width: 72″ steel snow plow blade — wide snow clearing with each pass
Blade Height: Approx. 15.75″ tall for solid engagement with snow and drifts
Angled Cut Width: Around 63″ when blade is angled to either side
Wear & Protection:
- Reversible steel wear bar for extended blade life
Adjustable skid shoes to protect blade and terrain
Trip springs for shock absorption
Rubber snow flap reduces snow spray
Push Tube: Heavy-duty 1.5″ formed steel tubing with cross members and V-design for strength
Swivel: Manual swivel system with multiple angle positions up to ~30° left/right

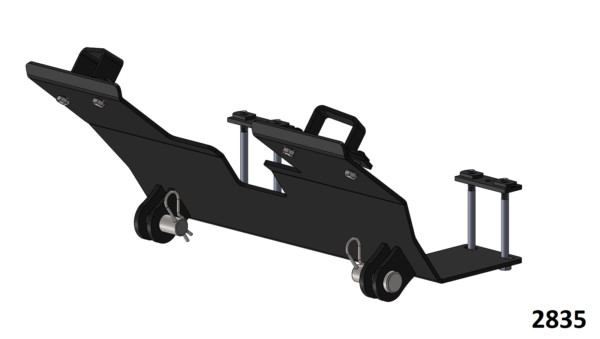

Mounting: Front-mount bracket tailored to Yamaha Rhino frame with grade hardware and clevis pins for a stable fit
Operation Requirement: Winch required (sold separately) to raise/lower blade during plowing
Usage: Ideal for clearing snow on driveways, trails, acreage lanes, and work areas
Fitment
| Model |
Year(s) |
| 450 Rhino |
2006-2011 |
| 660 Rhino |
2004-2008 |
| 700 Rhino |
2006-2013 |
