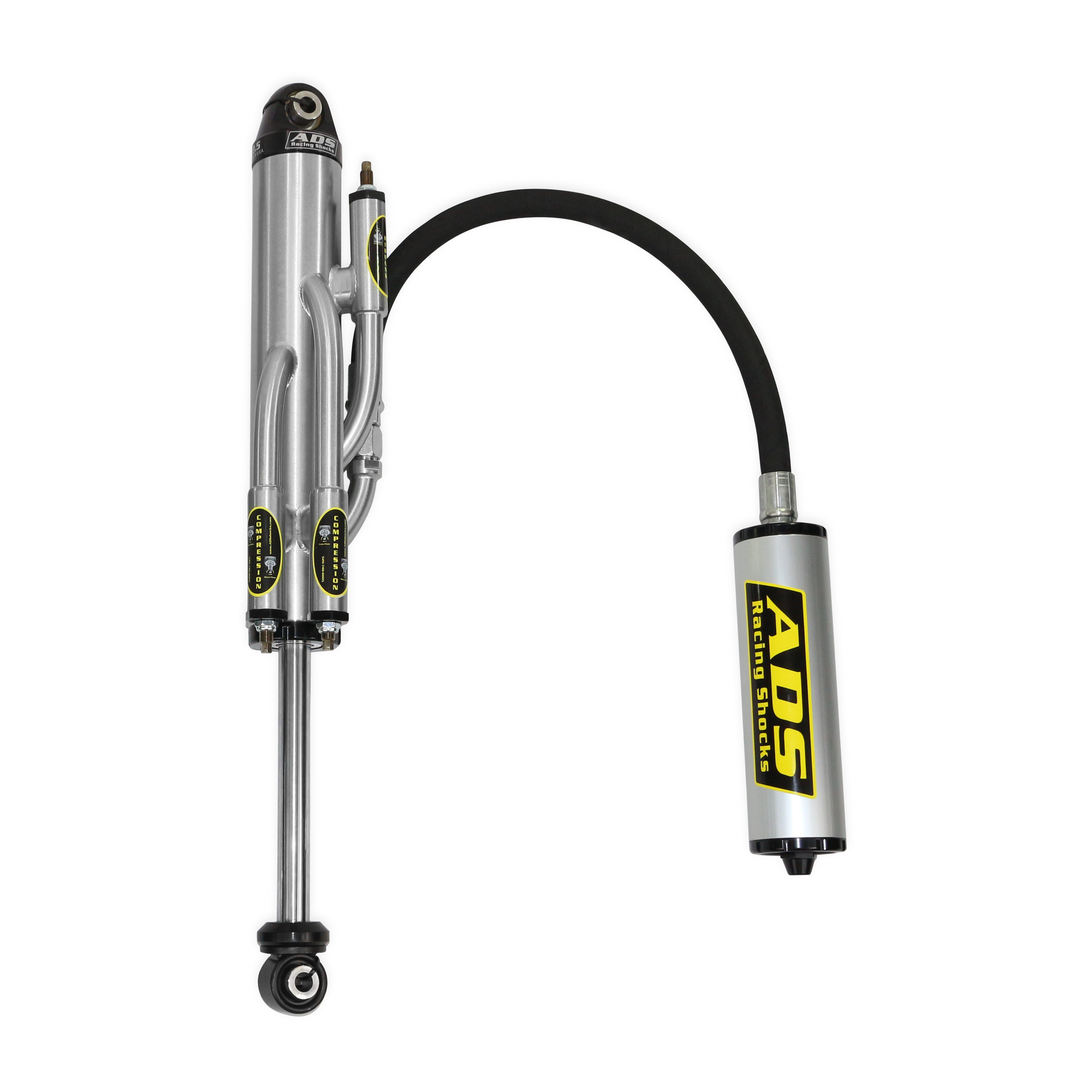

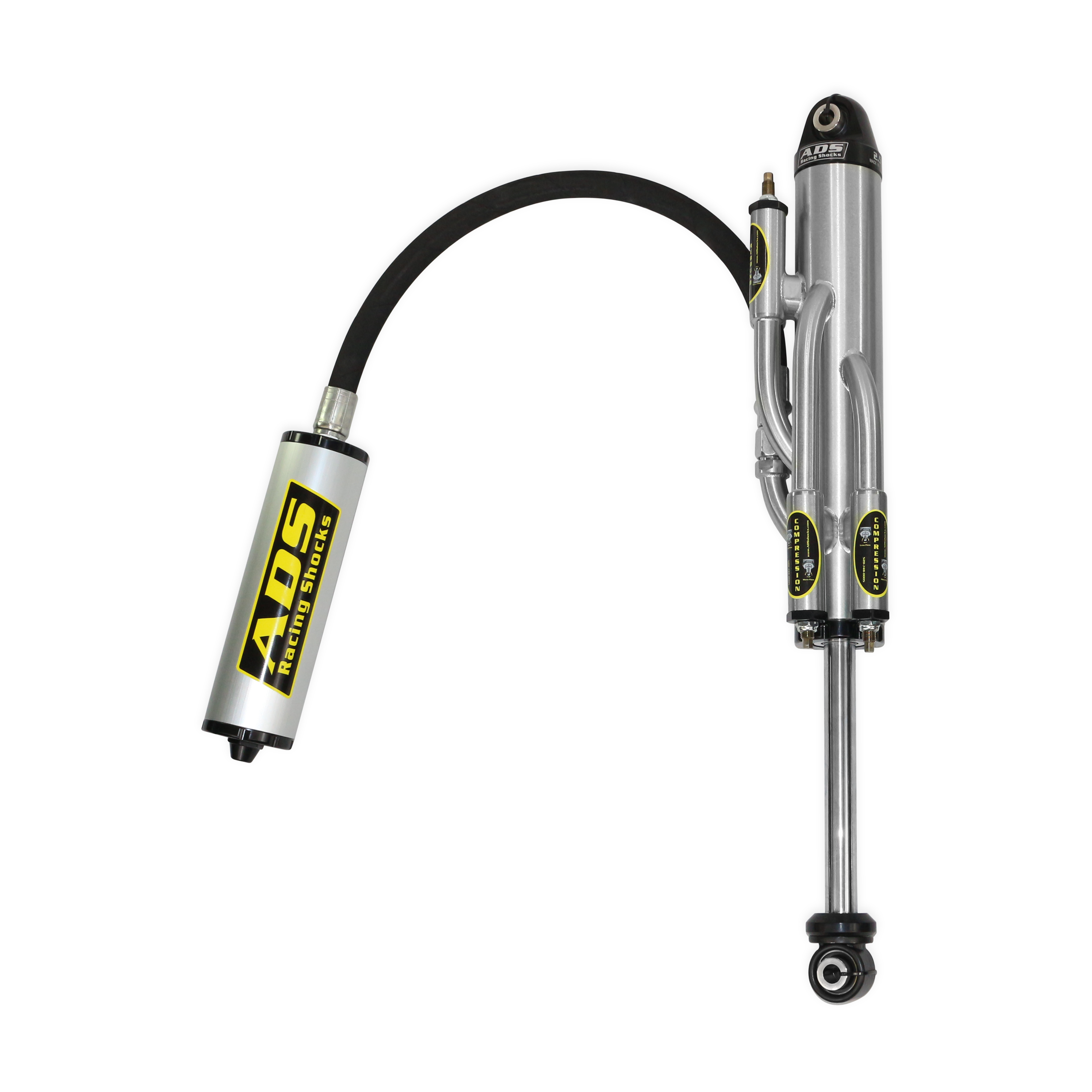

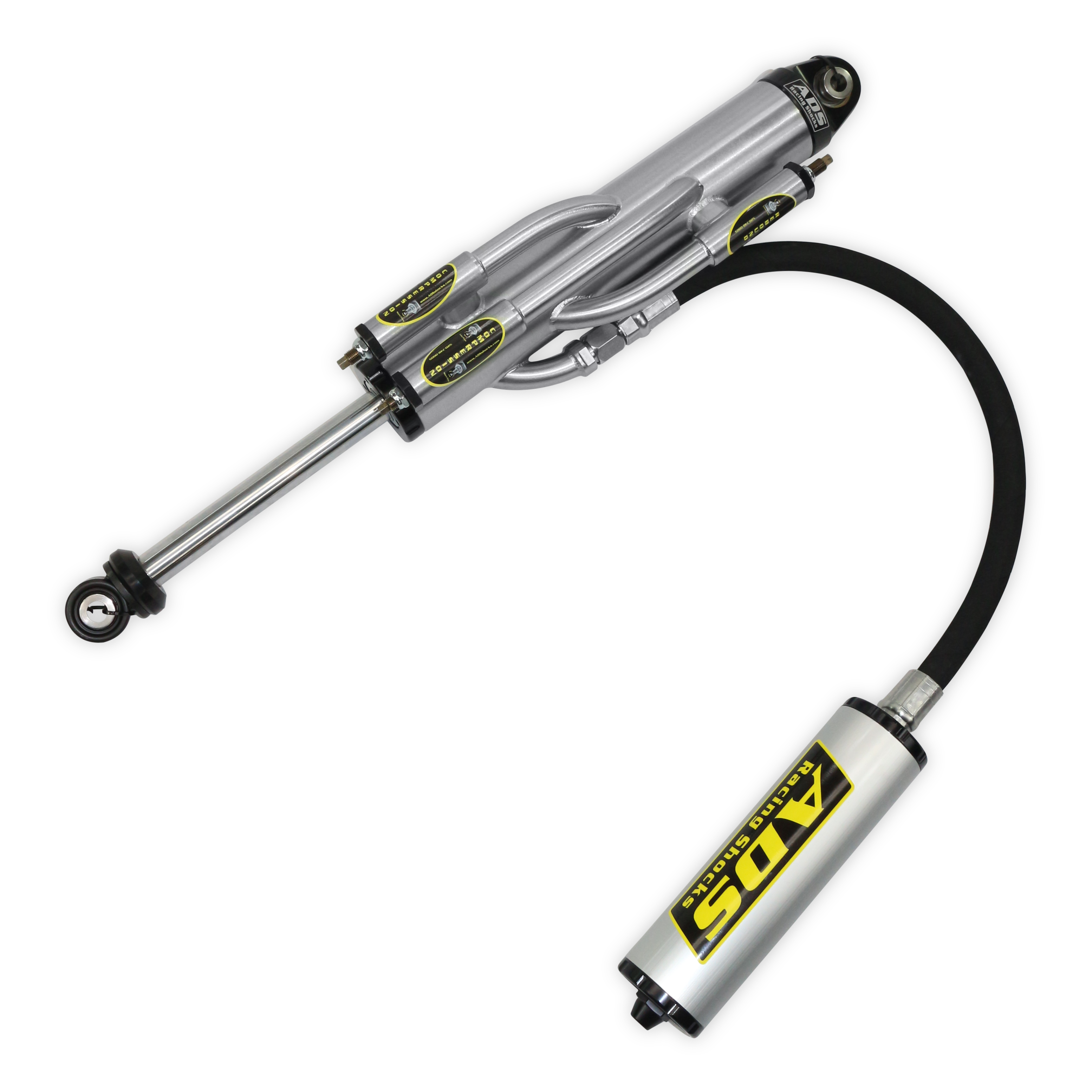

Bypass Shocks 2.5 in. x 12 in. Stroke 3 Tubes Style 2 Welded Lower Eye
ADS Racing Shocks external bypass options are designed around racing first and foremost, performance reliability and longevity are primary concerns when determining flow rates and zone placement. Multiple zones allow end users to dial in the damping curve to driver and chassis type. Enhanced flow in critical areas reduces heat buildup and harshness, these reductions in restriction amplify traction potential and driver control. Large capacity reservoirs aid in cooling as well as reducing pressure gain in the system. Large diameter shafts increase strength for extreme applications and stand up to the abuse of racing time and time again. All these features together deliver a bullet proof bypass shock that is guarantied to preform on your race car or weekend warrior.
Features:
- Large Bore 2.5 shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
- Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.
- Black anodized billet aluminum top and bottom caps
- Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
- Shaeffer’s high grade temperature stable synthetic hydraulic fluid
- Fully rebuildable
- Made in America
| Comp. | 20.14 IN |
|---|---|
| Diameter | 2.5 |
| Emission Code | 6 |
| Ext. | 32.14 IN |
| Mounting Width and Bolt Size | 1.5" x .500" |
