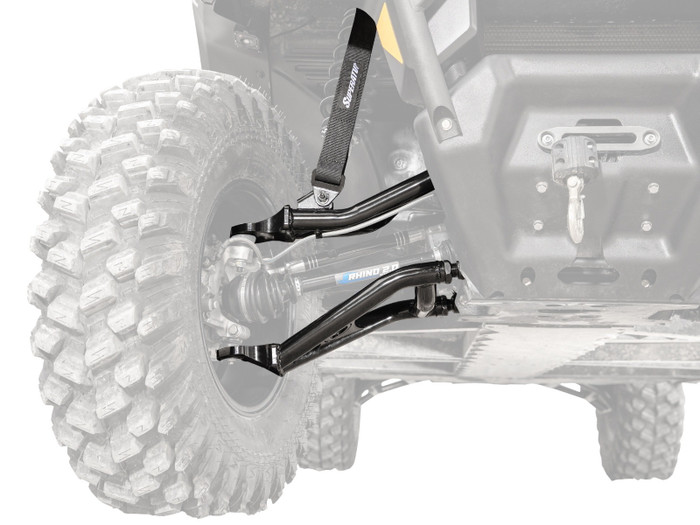

Can-Am Defender HD5 Atlas Pro BFT Suspension Kit

Rock 34” Tires with Atlas Pro A-arms
Do you want to add more tire clearance without raising your center of gravity with a big lift? No problem—SuperATV’s Can-Am Defender HD5 Atlas Pro BFT Suspension Kit is just what you need. With this suspension kit, you can install massive 34” tires and keep your center of gravity low without adding a heavy lift kit. How’d we do it? BFT gives you monstrous 2” forward offset Atlas Pro A-arms and a 2” lift in the form of shock brackets and spring spacers.

Unbeatable Atlas Pro Tubing
Atlas Pro A-arms are the strongest we’ve ever built, crafted from 1.5” DOM tubing—0.5” larger than stock and 0.25” bigger than our standard high-clearance design. They’re reinforced to eliminate common OEM weak points, so they feature CNC laser-cut steel brackets and billet aluminum spring spacers for maximum durability. A UV-resistant powder coat protects against rust and corrosion, while delivering 1.5” of added ground clearance.

We’re so confident in our A-arms that they come with a lifetime warranty. Good luck finding that anywhere else!

We’ll Do the Work for You
Purchase a set of SuperATV ball joints and we will install them for you. You save money and time. No need to buy a press, or remove your old ball joints, and press them back in. We'll do all the work for free!

NOTE: You must re-use your stock ball joints if you don’t select preassembly.

Keller Ball Joints
Keller Ball Joints use a two-piece design that eliminates the need for a snap ring. They thread onto your A-arms like a nut and bolt, which makes these ball joints virtually impossible to pull out. The high-quality chromoly steel stud combined with an advanced tool-steel body makes them perfect for bigger machines, bigger tires, and bigger rides. And since they’re greaseable and rebuildable, you can keep them running perfectly.

Super Duty 300M Ball Joints
300M grade steel is the strongest ball joint material on the market. We took that material and combined it with our superior design engineering to make the strongest stud possible. That means minimal narrowing at the neck and an adjustable stud. At 2.25x stronger than stock, you can't buy a stronger ball joint than SuperATV’s super duty 300M ball joint.

Heavy-Duty Ball Joints
Our heavy-duty ball joints are designed with ultimate performance and convenience in mind. Whether you’re doing flips or chasing hills, our proprietary blend of hardened 4340 VAR steel and zinc plating means this ball joint can take it. Our tests show that our ball joint can take double the pressure of an OEM ball joint!

Standard Duty Ball Joints
SuperATV’s standard replacement ball joints give you OEM quality without the OEM price! They’re made with hardened chromoly steel studs and housings—all zinc plated—for superior strength and longevity. All of this delivers a ball joint that’s as strong as or stronger than stock.

KIT INCLUDES:

• Upper and lower front A-arms
• Steering stop kit
• 17” Limit straps (Not needed if running Rhino 2.0 Axles)
• Spring spacers
• Shock brackets
• Shock bump stop (Required only for 34” tires)
