Get Control Over Your Steering

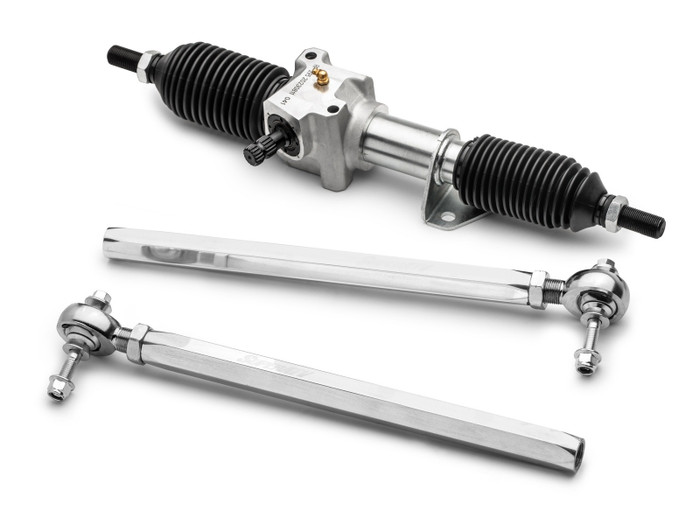

It's only a matter of time before your worn-out Defender rack becomes another thing on your to-do list. Replace it with the best-of-the-best: SuperATV's Can-Am Defender HD7 RackBoss 2.0 Rack and Pinion. Our patented X24 Tech incorporates bushings at both ends of the rack, decreasing wear by more than 50% compared to stock. Installing RackBoss 2.0 gives you reliable performance that will carry you through the hardest jobs.
Innovative X24 Technology and Dual Bushings
Our dual PTFE bushing design eliminates the typical wear and tear on a rack and pinion. With our X24 Tech, you get bushings at both rack ends. This allows RackBoss 2.0 to handle big hits with larger tires without wearing out quickly. The built-in grease fittings let you kick out all the gunk that piles up when you go wild in the mud.
Swaged Tube Tie Rods
Our steel swaged tube tie rods maximize strength without adding weight. The innovative swaged design enhances the longevity of the 7/8" diameter tubing. And the 15 mm inner ball and sockets and 15 mm outer tie rod ends improve and upgrade strength in the weakest spots. They're an absolute must-have.
Solid Steel Bar Tie Rods
You'll need a tough tie rod that matches your riding style. Our solid steel bar tie rods are the top tier. They're crafted from 1" thick steel bars and come with robust 3/4" outer heim joint tie rod ends. But that's not the end of it—they also feature adjustable inner tie rod ends with 3/4" rod threads and 16 mm rack threads. What does this all mean? It means they're built to endure rough rides and handle heavy blows.
Patent No. 11,345,393
It's only a matter of time before your worn-out Defender rack becomes another thing on your to-do list. Replace it with the best-of-the-best: SuperATV's Can-Am Defender HD7 RackBoss 2.0 Rack and Pinion. Our patented X24 Tech incorporates bushings at both ends of the rack, decreasing wear by more than 50% compared to stock. Installing RackBoss 2.0 gives you reliable performance that will carry you through the hardest jobs.
Innovative X24 Technology and Dual Bushings
Our dual PTFE bushing design eliminates the typical wear and tear on a rack and pinion. With our X24 Tech, you get bushings at both rack ends. This allows RackBoss 2.0 to handle big hits with larger tires without wearing out quickly. The built-in grease fittings let you kick out all the gunk that piles up when you go wild in the mud.
Swaged Tube Tie Rods
Our steel swaged tube tie rods maximize strength without adding weight. The innovative swaged design enhances the longevity of the 7/8" diameter tubing. And the 15 mm inner ball and sockets and 15 mm outer tie rod ends improve and upgrade strength in the weakest spots. They're an absolute must-have.
Solid Steel Bar Tie Rods
You'll need a tough tie rod that matches your riding style. Our solid steel bar tie rods are the top tier. They're crafted from 1" thick steel bars and come with robust 3/4" outer heim joint tie rod ends. But that's not the end of it—they also feature adjustable inner tie rod ends with 3/4" rod threads and 16 mm rack threads. What does this all mean? It means they're built to endure rough rides and handle heavy blows.
| RackBoss 2.0 Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod | |
| X24 Tech Dual-Bushing Design | ✔ | ✔ |
| Inner Ball and Socket Thread Diameter | 14 mm rod threads, 16 mm rack threads | 3/4” rod threads, 16 mm rack threads |
| Outer Tie Rod End Thread Diameter | 14 mm | 3/4” |
| Tie Rod Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
| Inner Boots | ✔ | ✔ |
| Steering Stop Kit | ✔ | ✔ |
| Misalignment Bushings, Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
Features
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall durability
- Available tie rod options:
- Swaged steel tube
- Solid steel bar
- Solid steel tie rods use:
- 3/4” outer tie rod ends
- Rebuildable inner tie rod ends that use 3/4” rod threads and 16 mm rack threads
- Swaged tube tie rods use:
- 14 mm outer tie rod ends
- Rebuildable inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
- 65% larger housing than stock
- Over 50% less wear than OEM after 15,000 cycles
- Grease fitting for rack gears
Fitment
- Can-Am Defender HD 7 2022+
- Can-Am Defender HD 7 DPS 2022+
- Can-Am Defender MAX HD 7 2022+
