Elevate Your Defender HD9 with GDP Portals
Want your Can-Am Defender HD9 to handle bigger obstacles and bigger tires? The SuperATV 6” Portal Gear Lift has you covered. With 4 inches of lift and built-in gear reduction, you get extra torque and ground clearance without stressing your machine out. Choose a 15% or 30% gear reduction based on how you ride, and if you want something super tough, go for the billet aluminum housing upgrade. If you’re looking to really take it to the top, go with a set of our dual idlers.

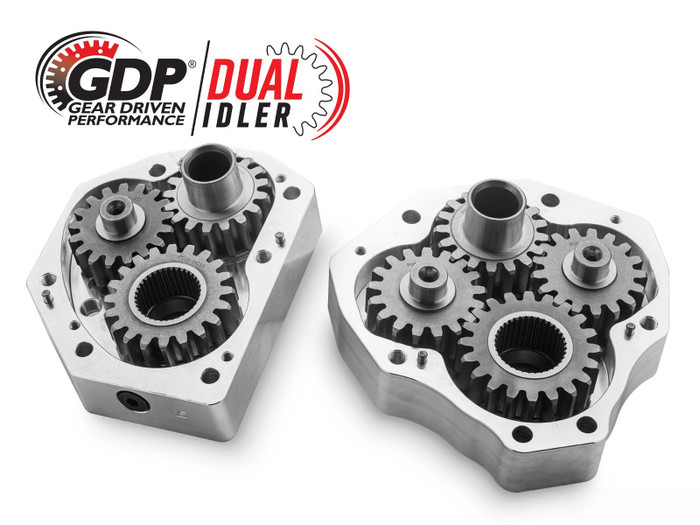

What Is a Dual Idler?
Our dual idler gear portals take performance seriously. With a second idler gear in the portal box, the load spreads out, which means more reliable torque and the strongest gear set you can get. But it only works if the gears mesh perfectly. That’s why every gear is precision CNC ground from tough 9310 steel.
Built for Any Terrain
GDP Portal Gear Lifts aren’t one-size-fits-all. Whether you’re playing in the sand, slinging mud, cruising trails, or knocking out chores, there’s an option for you. Go with a 15% gear reduction if you want to keep things fast, or choose a 30% for serious torque and oversized tires. Dual idler gears add the extra strength you need to ride harder with confidence.
Keeps Your Drivetrain Safe
With a gear reduction built into the wheel hub, GDP portals minimize the stress that normally travels through the drivetrain. This added protection helps extend the life of key parts like the axles, differential, prop shaft, and transmission when running larger tires.

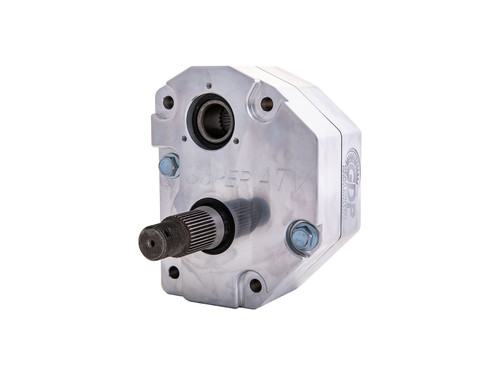

Built Tough with Aluminum and Steel
We didn’t cut corners when building these portals. Strong cast and billet aluminum housings paired with advanced steel alloy backing plates make them incredibly tough and hard to beat.
Want your Can-Am Defender HD9 to handle bigger obstacles and bigger tires? The SuperATV 6” Portal Gear Lift has you covered. With 4 inches of lift and built-in gear reduction, you get extra torque and ground clearance without stressing your machine out. Choose a 15% or 30% gear reduction based on how you ride, and if you want something super tough, go for the billet aluminum housing upgrade. If you’re looking to really take it to the top, go with a set of our dual idlers.
What Is a Dual Idler?
Our dual idler gear portals take performance seriously. With a second idler gear in the portal box, the load spreads out, which means more reliable torque and the strongest gear set you can get. But it only works if the gears mesh perfectly. That’s why every gear is precision CNC ground from tough 9310 steel.
Built for Any Terrain
GDP Portal Gear Lifts aren’t one-size-fits-all. Whether you’re playing in the sand, slinging mud, cruising trails, or knocking out chores, there’s an option for you. Go with a 15% gear reduction if you want to keep things fast, or choose a 30% for serious torque and oversized tires. Dual idler gears add the extra strength you need to ride harder with confidence.
Keeps Your Drivetrain Safe
With a gear reduction built into the wheel hub, GDP portals minimize the stress that normally travels through the drivetrain. This added protection helps extend the life of key parts like the axles, differential, prop shaft, and transmission when running larger tires.
Built Tough with Aluminum and Steel
We didn’t cut corners when building these portals. Strong cast and billet aluminum housings paired with advanced steel alloy backing plates make them incredibly tough and hard to beat.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Advanced Gaskets, Seals, and Bearings
Our portals use:
Don’t Forget Your Frame Stiffener
Bigger tires and portals mean bigger forces on your frame. When upgrading to Can-Am portals, protect your machine and reinforce your suspension with a SuperATV Frame Stiffener.
Unbeatable Customer Service
Need help figuring out the right portals? We’ve got a team that specializes in just that. Give us a call and we’ll help get the right setup headed your way.
| 4” Portal Gear Lift Includes: | ||
|---|---|---|
| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings. | ||
| (4) Universal hubs and stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates | ||
| (2) Steel steering arms | ||
| Extended brake lines | ||
| All required hardware, including recessed castle nut socket | ||
| Frame stiffener (optional) | ||
| Max Tire Size Recommendations for 4” Portal Gear Lift | ||
|---|---|---|
| Max Tire Size | Required Suspension Setup with 4" Portals | |
| 26" | Stock | |
| 27" | 3" Lift Kit | |
| 28" to 34" | 2" Forward Offset A-Arms | |
| 28" to 38" | 6" Lift Kit | If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator . | Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
Patent # 11,299,042
Patent # 11,318,787
Features
- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 3/4” front and rear offset—1.5” total extension
- Lighter than the competition
Fitment
- Can-Am Defender HD 9 2022+
- Can-Am Defender HD 9 DPS 2022+
- Can-Am Defender HD 9 DPS CAB 2022+
- Can-Am Defender HD 9 XT 2022+
- Can-Am Defender MAX HD 9 2022+
- Can-Am Defender MAX HD 9 DPS 2022+
- Can-Am Defender MAX HD 9 XT 2022+
