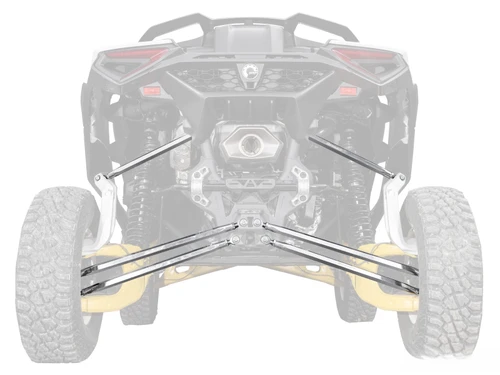

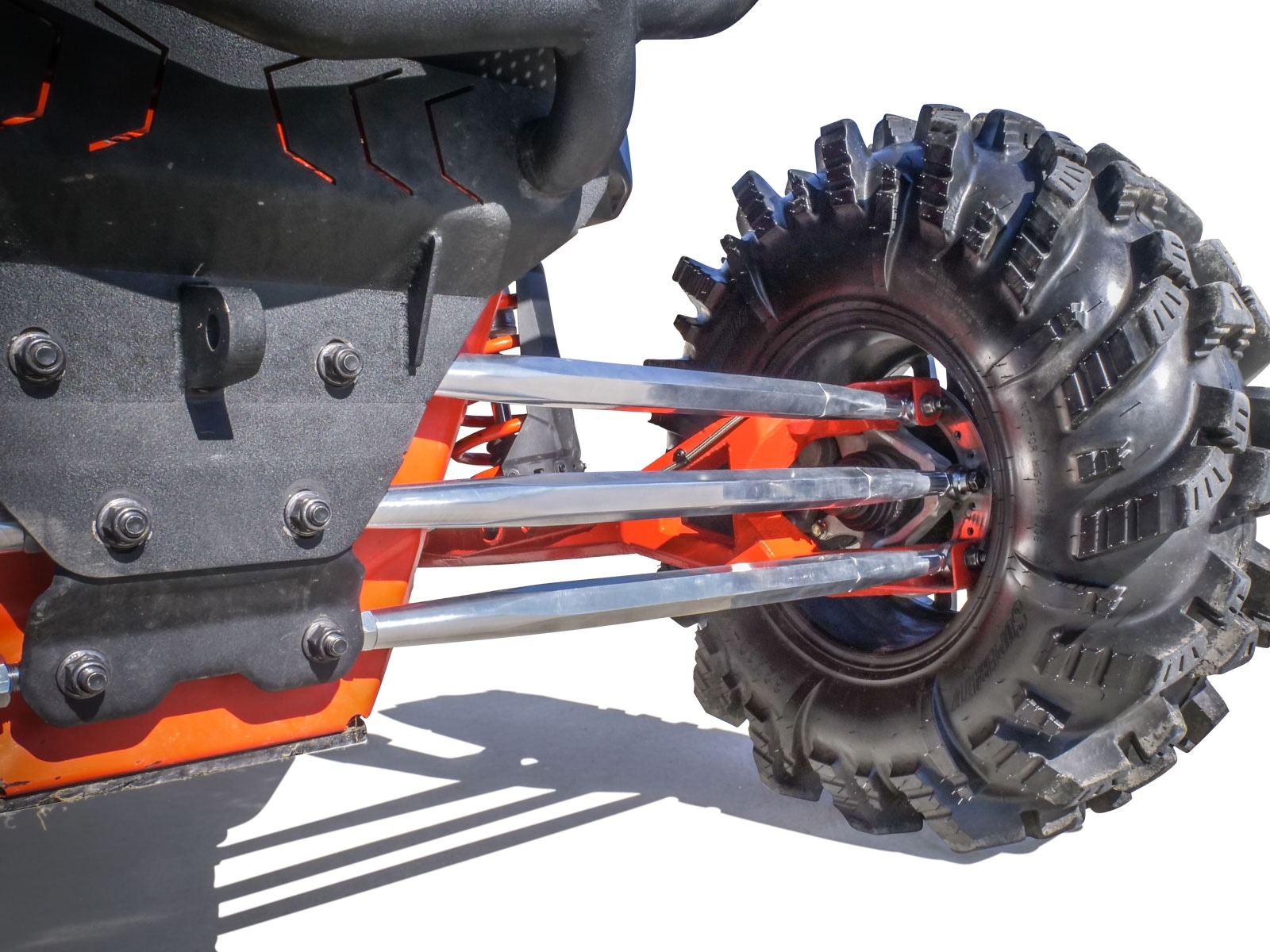

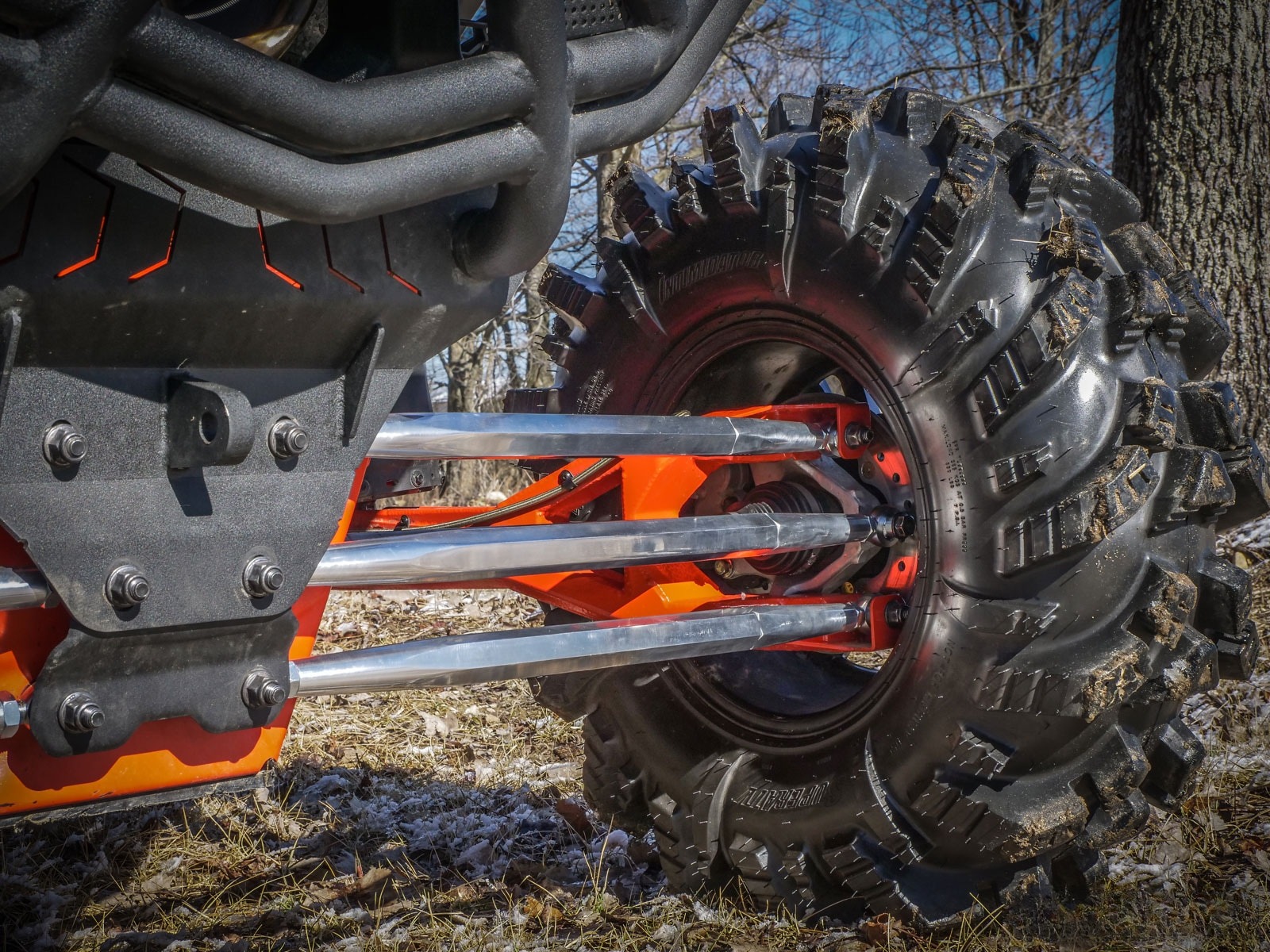

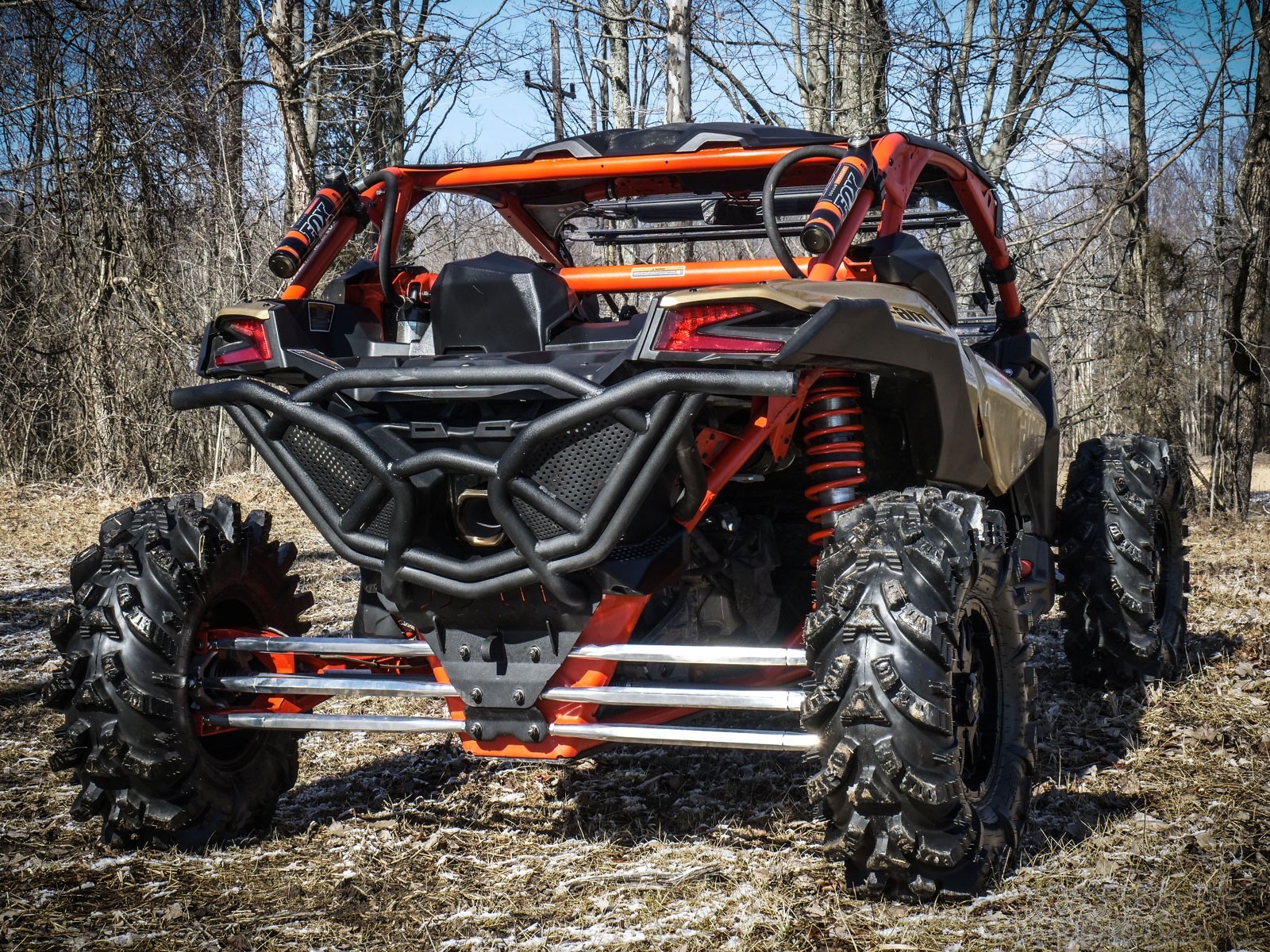

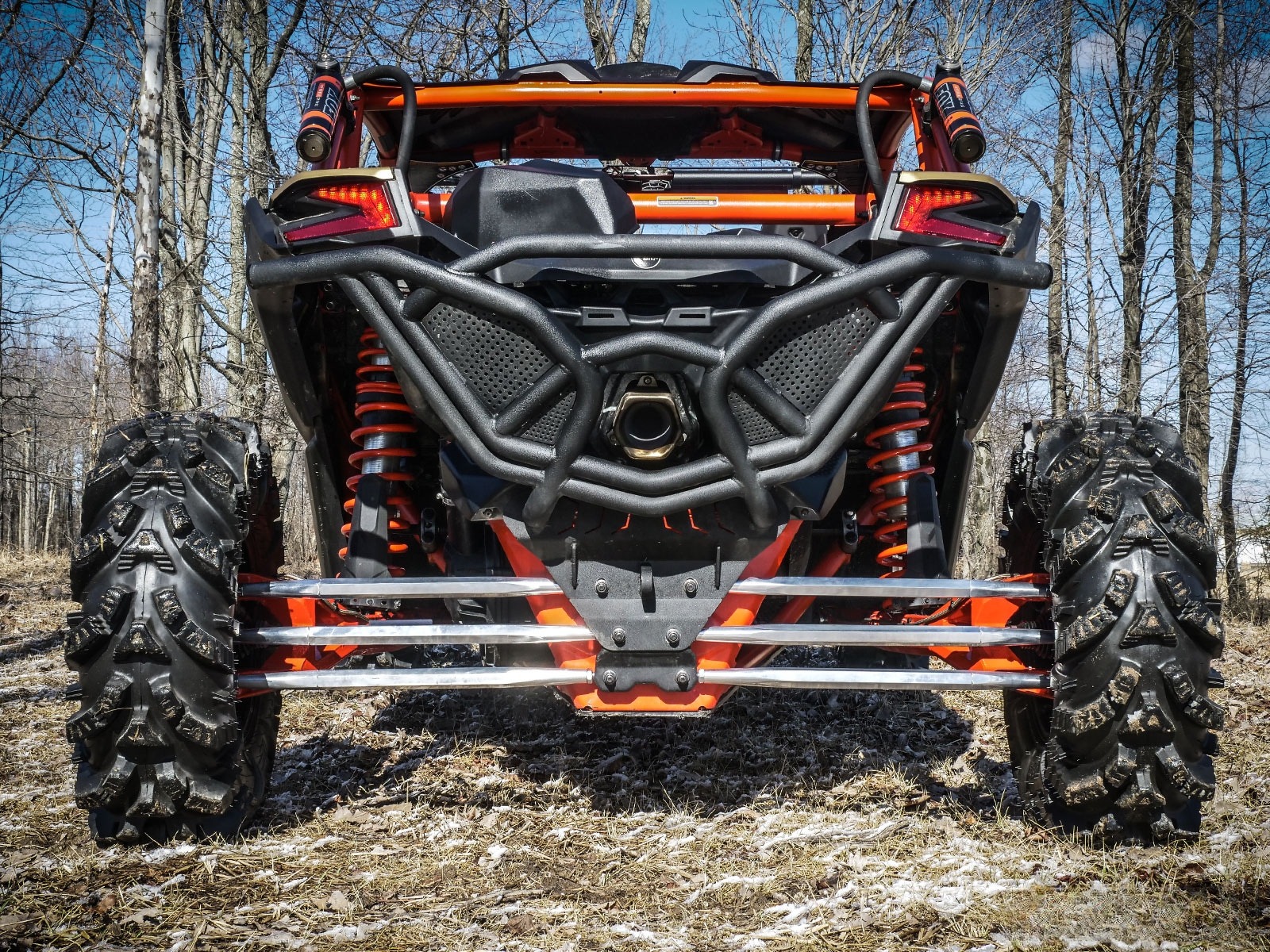

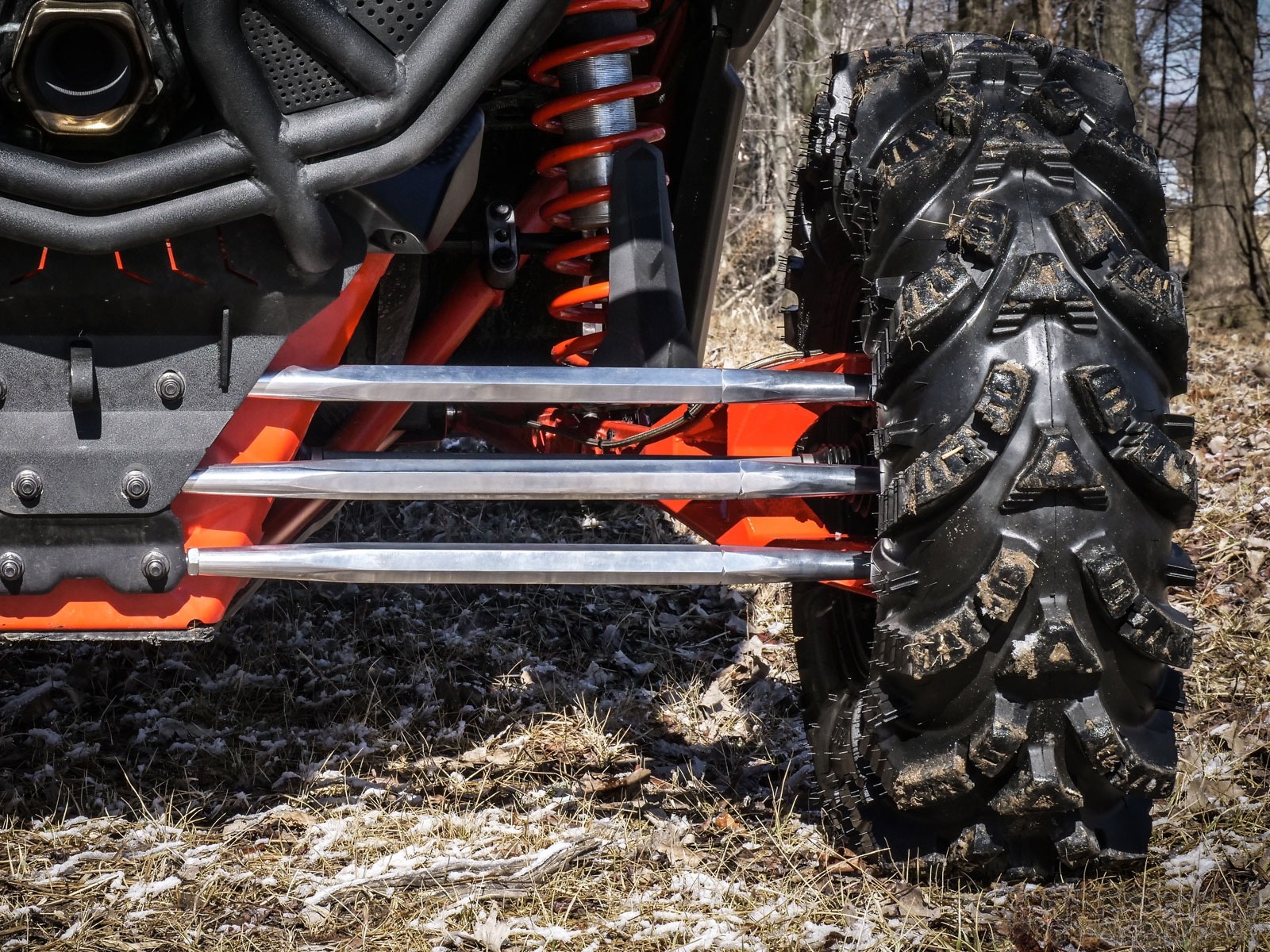

Can-Am Maverick X3 Billet Aluminum Rear Radius Arms, 7075 Hex

The stock rear radius arms on a Can-Am Maverick X3 are 1" steel, and if you ride hard they're one of the first things that need beefing up. These billet aluminum radius arms are machined from a 1-1/4" solid 7075 billet aluminum bar, much stronger than the factory steel, with a hex shape that looks great and stands up to heavy hits. Buy just the two lower arms or the complete set of six.

Why These Arms

Your X3 likes to play as hard as you do, and the rear radius arms need to keep up. Strength comes from the 1-1/4" solid 7075 billet aluminum bar. Then the hexagonal design adds a head-turning look while also helping the arms resist heavy impacts. Whether you need upgraded lower arms, or all six for a complete rear setup, there's an option here for you.

Helical Inserts and Heavy-Duty Heims

A billet arm is only as good as the threads holding its heim joints. These arms have helical inserts installed in the threads, which reinforce them with high-quality steel. With helical inserts, the heim joints won't strip their threads, so they stay securely attached.

The heim joints themselves are heavy-duty 5/8" x 18 steel joints with precision-made 5/8" steel bushings for smooth operation and long-term reliability. Each arm uses a left-hand thread on one end and a right-hand thread on the other, so you can adjust camber and toe without taking the arm off. The hex design gives you a good place to put a wrench, which makes those adjustments easy. Now you can stop worrying about your suspension and focus on the trail.

Ride With Confidence

Strength, style, and reliability let you ride the way you want. Hit the whoops at full throttle, take that hill without lifting, and drive into the mud pit without hesitation. With these radius rods on your Maverick X3, the rear suspension is ready for it.

Lowers or the Complete Kit

• Lower (2 rods): includes the lowest 2 radius arms with heim joints. The lower arms can be used with your stock upper arms.

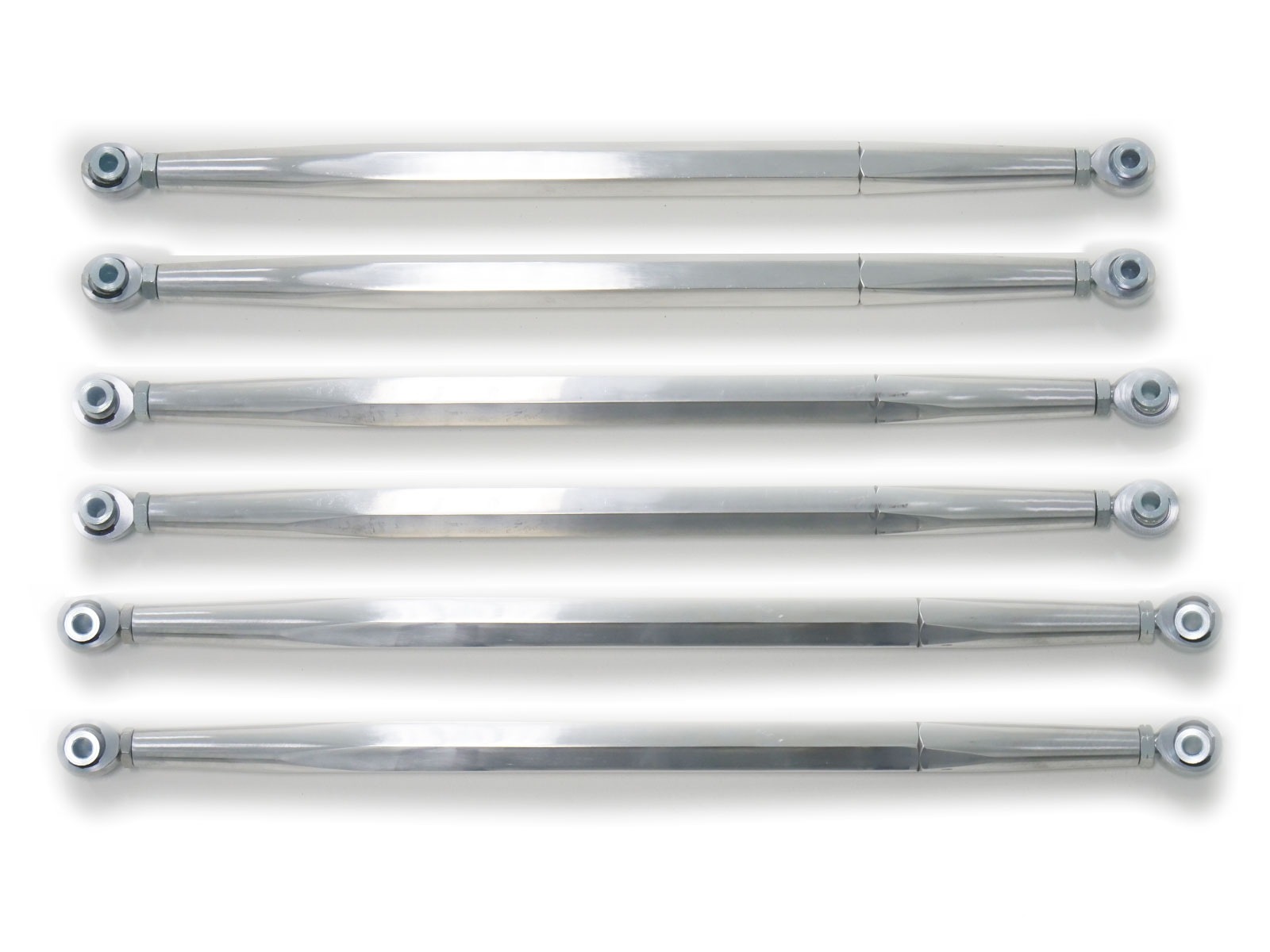

• Complete kit (6 rods): includes all 6 radius arms, uppers and lowers, with heim joints.

Features and Specs

• Made from 1-1/4" 7075 aluminum bar
• Helical inserts for unbreakable threads
• Fully adjustable 5/8" x 18 heim joints with 5/8" steel bushings
• Left-hand and right-hand threads for easy camber and toe adjustment
• Hexagonal design for strength and style
• Available for 64" and 72" machines
• Comes with a lifetime warranty

Who They're For and What Pairs Well

These are for X3 owners who want billet strength and a cleaner look in the rear suspension. They pair well with heavy-duty Maverick X3 trailing arms and X3 axles. Compare the boxed steel and tubed versions in our Can-Am Maverick X3 radius arms category.

Fitment

64" Models

72" Models

Note: Compatible with both 6 and 8 bolt rear suspension configurations

Choose your machine width and lower pair or complete kit when you order.

Installation

Pick the instructions for your machine width and kit type.

• Installation instructions (RA-CA-X3-002, PDF)
• Installation instructions (RA-CA-X3-002-B2, PDF)
• Installation instructions (RA-CA-X3RS-HX-B2, PDF)
• Installation instructions (RA-CA-X3RS-HX, PDF)
