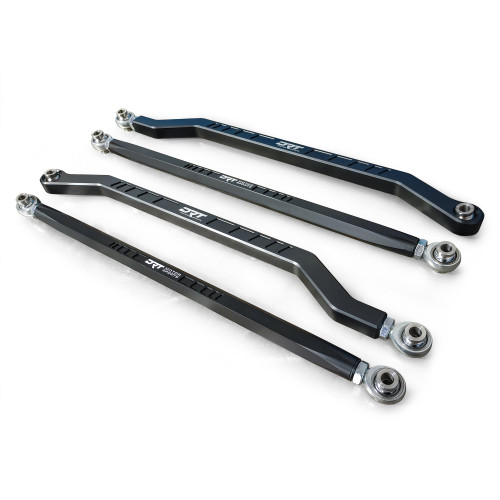

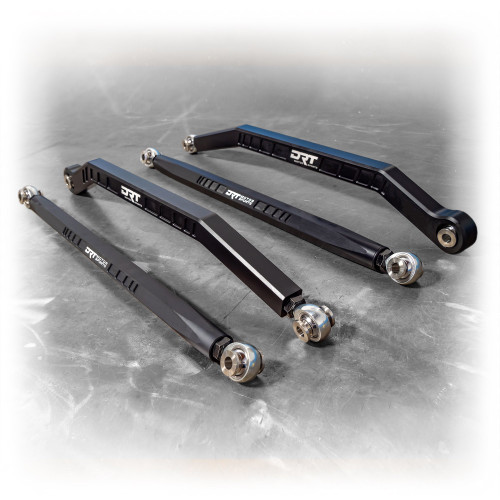

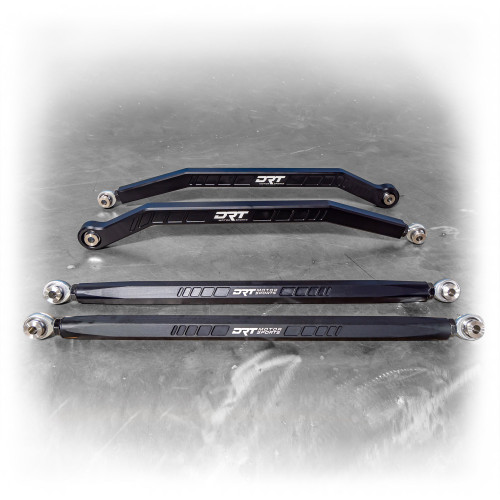

The 2024 RZR XP's factory radius rods are not adjustable and sit low. DRT's billet set gives the highest clearance possible, adjustable uppers for camber, and lowers with press-fit Teflon-lined wide spherical bearings for maximum load resistance. Made in the USA.
Features and Benefits
- Stronger and lighter: 6061-T6 billet aluminum.
- Adjustable uppers: left/right-hand rod ends for camber.
- Load-ready lowers: press-fit Teflon-lined wide spherical bearings, spiral locks.
- PTFE rod ends: 3-piece 5/8".
- Easy adjust: hex bar takes a wrench.
- Finish: mil-spec anodize, 303 stainless spacers.
Specifications, Materials and Finish
- Material: 6061-T6 billet aluminum, made in USA
- Uppers: 3-piece PTFE-lined 5/8" rod ends
- Lowers: press-fit Teflon-lined wide spherical bearings with spiral locks
- Spacers: 303 stainless steel
- DRT part number: 20010RR64201 (patent pending)
Fitment
| Year | Make | Model |
|---|---|---|
| 2024+ | Polaris | RZR XP 1000 (2-door) |
| 2024+ | Polaris | RZR XP 4 1000 (4-door) |
Fitment note: DRT's tags also list the 2026 RZR XP; confirm fitment with us for 2026.
TRAILWORX Fitment Guarantee: fitment above is taken directly from DRT Motorsports. If you order the part listed for your vehicle and it does not fit, we will make it right with the correct part or a prepaid return, at no extra cost to you. Not sure about your trim? Send us your year, make, model and trim before you order and we will confirm it.
What's in the Box
- Complete high clearance radius rod set
Who It's For and What Pairs Well
For 2024+ RZR XP owners. Pair it with the DRT Polaris RZR XP 1000 / XP 4 1000 2024-2025 Front Winch Bumper.
Installation Notes
Replace one rod at a time, matching the length of the rod it replaces. Per DRT, verify the jam nuts are tight and installed with thread locker, use a paint mark to spot movement, and inspect the jam nuts before each ride. After install, get an alignment check, since camber changes with rod length. Before buying, confirm your car's width and model against the fitment list, since radius rod lengths differ between platforms. Keep the factory rods as spares until you have a few rides on the new set. Care: wash anodized aluminum with mild soap and water, then rinse and dry. Avoid acidic wheel cleaners and abrasive pads, which can dull an anodized finish. If you plan to color-match parts, have it done before installation so the hardware is only torqued once.
Free shipping on this DRT Motorsports part from Trailworx UTV. DRT Motorsports designs and builds its UTV parts in Riverside, California.
