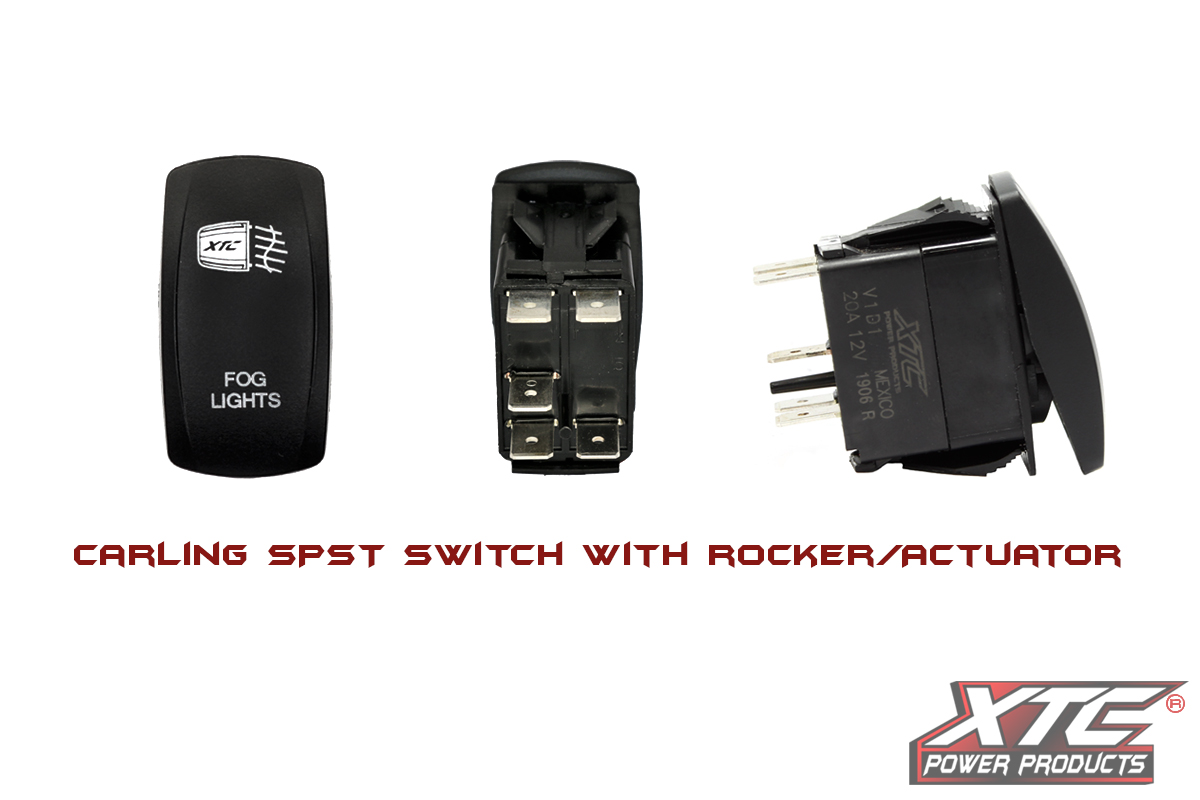

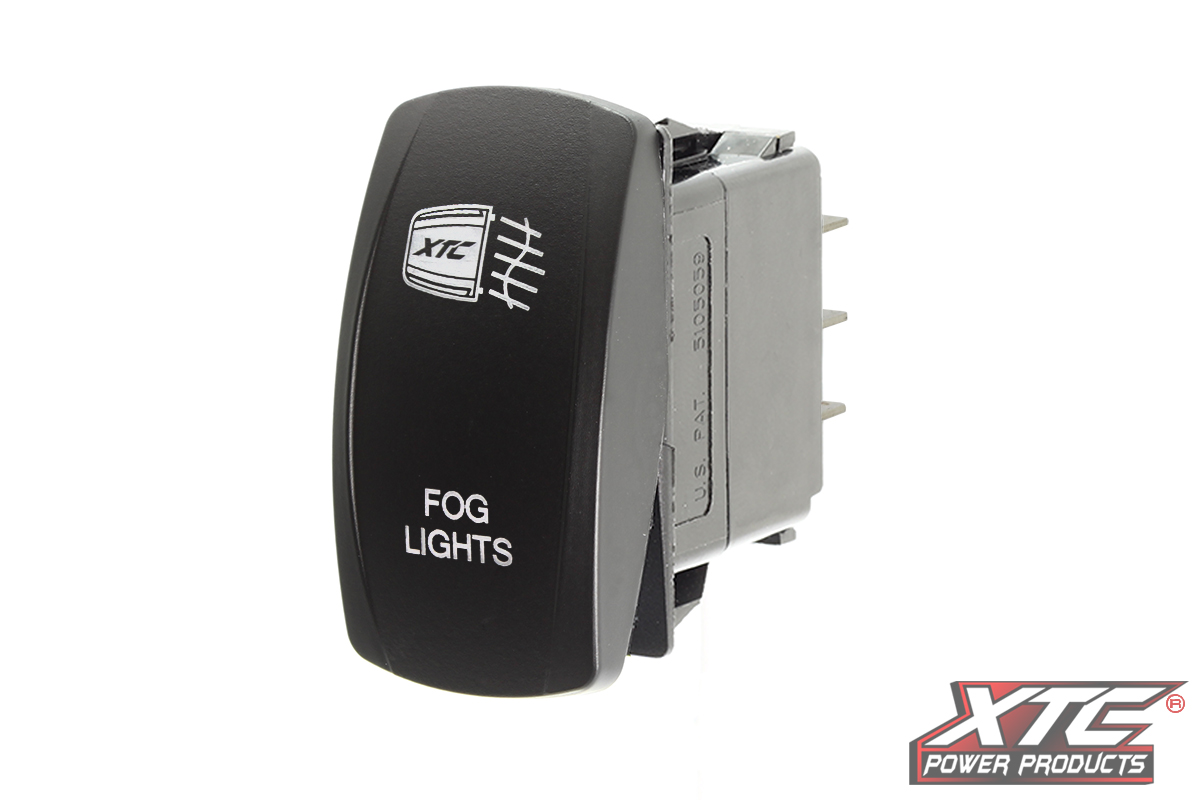

Contura V Switch Body & Actuator w/ 5 Terminals
SPST ON-OFF Switch 20A 12V
Upper LED is ON when the upper part of the rocker is pressed

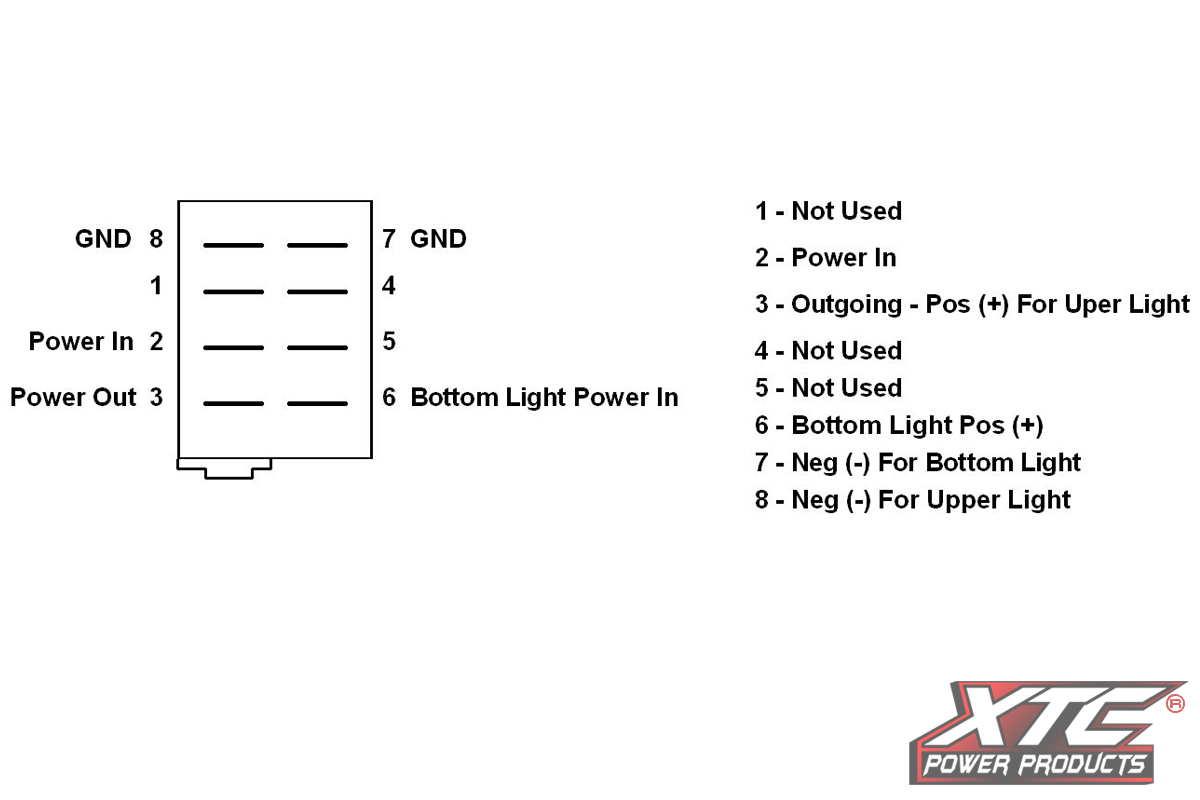

Lower LED is independently wired
No rear barriers between terminals
Works with XTC Power Control Systems all models
Insulated 1/4″ female quick disconnect terminals can also be used
XTC Rocker Switches are the cherry on any UTV pie. Custom Laser-Engraved Switch Covers make accessory identification a breeze. Bright, lit LEDs shine through the icons and illuminate them when the accessory is activated. The Bottom LED is wired independently and can be connected/activated through an ignition power source. The Rocker Switches are available in multiple LED configurations, including red/red, red/blue, blue/blue, amber/amber, and none-lit for extra personalization. They fit a standard rocker switch cut-out size that comes integrated on most UTVs’ OE Dash. Although the Rocker Switch rating is for 20 Amps of current, it should be used with a relay whenever the load exceeds 15 Amps to prolong the switch’s life. XTC Rocker Switches plug directly into XTC Power Control Systems and Accessory Harnesses. However, the option to wire them independently using 1/4″ spade connectors, located on the rear, is also available. With a wide variety of designs to choose from, including light bars, helmet pumps, air compressors, auxiliary power, and GPS units, there’s something for everyone.
