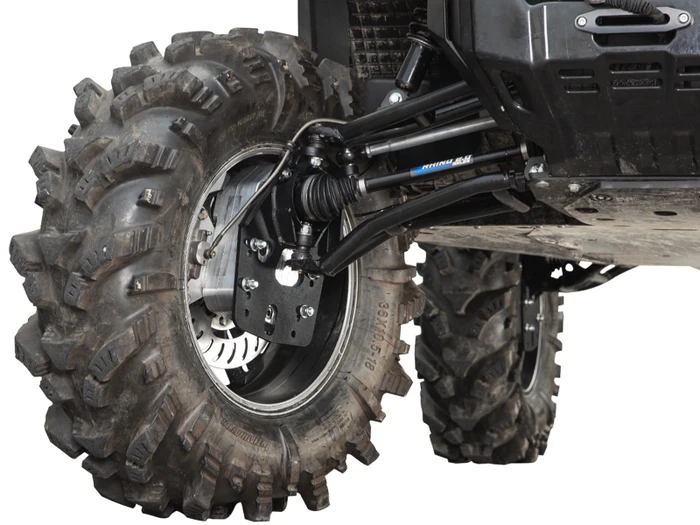

Honda Pioneer 1000 6" Portal Gear Lift

More Clearance. More Torque. More Pioneer.
Put your Honda Pioneer 1000 on GDP Portals and find out what it’s really capable of. SuperATV’s 6” Portal Gear Lift gives you room for monster tires and the torque to put them to work. Choose a 30%, 45%, or 60% gear reduction, cast or billet aluminum housings, and single or dual idler gears. We’ve done the hard work so you can take on the hard trails.

Which Gear Reduction Should You Choose?

• 30% gear reduction: Get extra torque while retaining more speed for faster trail rides.
• 45% gear reduction: Step up the torque to help turn bigger tires.
• 60% gear reduction: Get our deepest reduction for big tires and deep mud.

Need help matching your tire size and riding style to a reduction? Check out our portal gear reduction calculator.

Should You Upgrade to Dual Idlers?
Adding a second idler gear is easy. Getting both gears to share the load takes precision—and that’s where GDP earns its name. Our CNC-ground 9310 steel alloy gears mesh perfectly to spread the load over twice as much surface area. You get more reliable torque transfer and our strongest gear set. If you plan to push your Pioneer hard, this is the upgrade you want.

Cast or Billet Aluminum?
Choose cast or billet aluminum housings for your Pioneer. Both options have reinforcement for gear retention and an interior optimized for oil flow. Each kit also includes 5/16” backing plates made from an advanced steel alloy that’s stronger than chromoly.

What Size Tires Can You Run?
Use the table below to match your tire size to your suspension setup.

Honda Pioneer 1000 Portal Gear Reduction Recommendations
Tire Size	Required Suspension Setup with 6" Portals
Up to 28"	Stock
Up to 28"	3" Lift Kit
29" to 31"	1.5" Forward Front A-Arms
29" to 31"	1.5" Forward Front A-Arms and 3" Lift Kit
32" to 37"	6" Lift Kit
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Before you order, check the Fitment tab for your model and year, wheel requirements, and compatibility restrictions.

Do You Need a Frame Stiffener?
We strongly recommend a SuperATV Frame Stiffener with your 6” portals. Portals and oversized tires can put extra strain on your machine, and a frame stiffener adds reinforcement where you need it.

How Do Portals Affect Your Drivetrain?
GDP Portals put the gear reduction at the wheel hubs. That helps reduce stress on your axles, differential, prop shaft, and transmission compared to oversized tires without gear reduction.

GDP Riders Say It Best
“I have owned the other brand of portals, and there is no comparison. GDP all the way. Fit and finish is perfect, installation is a breeze, and shipping is super fast.” —Levi, GDP Portal Gear Lift customer

“Love the portals so far. Super smooth and plenty of torque” —Austin L., GDP Portal Gear Lift Customer

Reviews reflect customer experiences across the GDP Portal Gear Lift lineup.

Built for Hard Rides

Our portal housings and advanced steel alloy backing plates give your Pioneer a tough foundation. Inside, precision-ground 9310 steel alloy gears deliver cool, quiet performance.
• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them


Advanced Gaskets, Seals, and Bearings
Our portals use:
• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing




6” Portal Gear Lift Includes:
(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
(2) Steel steering arms
(8) Rear backing plate bushings with sleeves
Extended brake lines
All required hardware, including recessed castle nut socket



Need Help Choosing Your Portals?
Our dedicated portal tech support team can help you choose the right setup for your Pioneer. Call (855) 743-3427 for help with gear reduction, housing options, and more.

Patent #11,299,042
Patent #11,318,787
