Maximize Performance with GDP Portals

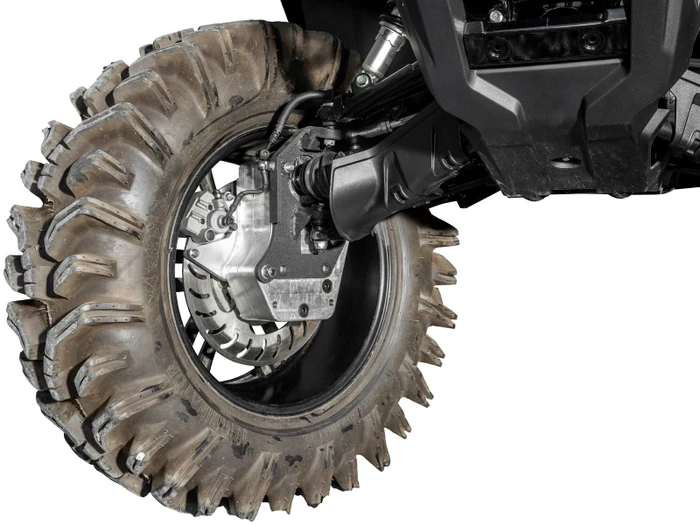

Take your Honda Rubicon beyond its limits with SuperATV’s 6” Portal Gear Lift. It gives you a lift and gear reduction in one package. And with your choice of a 30% or 45% gear reduction, you get the torque you need to conquer mud, rocks, and hills. You’ll also get more ground clearance and the ability to run bigger tires. If you want to dominate every ride, GDP Portals give you the power and performance to do it all.
Unmatched Torque and Power
A 30% or 45% gear reduction gives your Rubicon serious power. If you want to tackle deep mud, haul heavy loads, or run massive tires, go with the 45% reduction. If you want to maintain your top speed while boosting torque, the 30% reduction is your best bet.
Protect Your Drivetrain for the Long Haul
Extra power means extra strain—but these Honda Rubicon GDP Portals protect your drivetrain. The gear reduction is built into the hub, keeping your axles, differential, and transmission protected from excess wear. And since our Honda Rubicon portals maintain your stock suspension, your axles stay cooler and last longer.
Stronger Than the Competition
You ride hard—your Honda Rubicon portals should need to be tough enough to handle it. Our cast and 6061 billet aluminum housings are built for extreme conditions, reinforced with advanced steel backing plates that’s stronger than chromoly.
Advanced Gaskets, Seals, and Bearings
Our portals use:
Get Expert Help
Need help choosing the right setup? Our customer support team is here to make sure you get the perfect set of portals. Call us today, and let’s get your Rubicon ready for anything.
6” Portal Gear Lift Includes:
Patent # 11,299,042
Patent # 11,318,787
Take your Honda Rubicon beyond its limits with SuperATV’s 6” Portal Gear Lift. It gives you a lift and gear reduction in one package. And with your choice of a 30% or 45% gear reduction, you get the torque you need to conquer mud, rocks, and hills. You’ll also get more ground clearance and the ability to run bigger tires. If you want to dominate every ride, GDP Portals give you the power and performance to do it all.
Unmatched Torque and Power
A 30% or 45% gear reduction gives your Rubicon serious power. If you want to tackle deep mud, haul heavy loads, or run massive tires, go with the 45% reduction. If you want to maintain your top speed while boosting torque, the 30% reduction is your best bet.
Protect Your Drivetrain for the Long Haul
Extra power means extra strain—but these Honda Rubicon GDP Portals protect your drivetrain. The gear reduction is built into the hub, keeping your axles, differential, and transmission protected from excess wear. And since our Honda Rubicon portals maintain your stock suspension, your axles stay cooler and last longer.
Stronger Than the Competition
You ride hard—your Honda Rubicon portals should need to be tough enough to handle it. Our cast and 6061 billet aluminum housings are built for extreme conditions, reinforced with advanced steel backing plates that’s stronger than chromoly.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Get Expert Help
Need help choosing the right setup? Our customer support team is here to make sure you get the perfect set of portals. Call us today, and let’s get your Rubicon ready for anything.
6” Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (2) Steel caliper mounting plates
- (2) Caliper mounting plate shims
- Extended brake lines
- All required hardware, including recessed castle nut socket
| Honda Rubicon Max Tire Size Recommendations | |
|---|---|
| Tire Size | Required Suspension Setup with 6" Portals |
| 28" | Stock |
| 30" | SuperATV Footwells | If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. | Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
Patent # 11,299,042
Patent # 11,318,787
Features
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings that don’t let anything through
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Fitment
- Honda Rubicon 500 2015-2019
- Honda Rubicon 520 2020+
