The moldboards are constructed from durable 14-gauge steel and have 1/4" thick, laser-cut braces. They come standard with a manual angle adjustment system (left, right, and center positions), or an optional electric-over-hydraulic power angle available separately (see Power Angle).
Our wear blade is crafted from 4" high abrasion-resistant (AR) steel plate—significantly thicker and taller than many competitors’ blades, which tend to wear out more quickly.
EMP plow frames are precision laser-cut from 1/4" and 3/8" thick steel and assembled using a tab-and-slot fabrication method. This puzzle-like fit ensures accurate alignment and a strong, consistent weld every time.

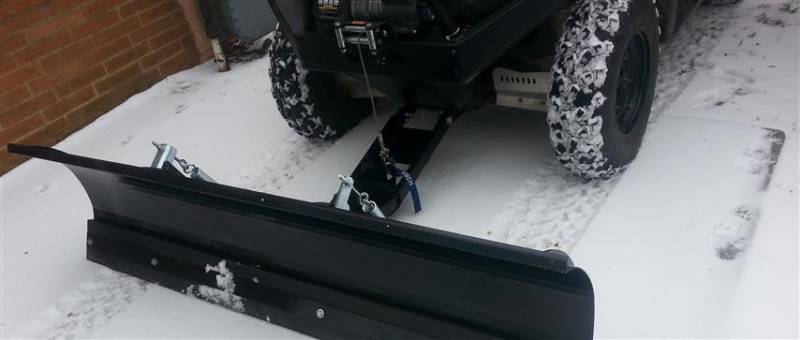

The plow mounting system secures to both the front and underside of your UTV using the included hardware. For added convenience, the mount can be removed at the end of the season by simply taking out six bolts. Attaching the plow takes less than a minute using the supplied hitch pins.
This assembly does not include a winch mount. If you need one, please see P/N 10573.
- Fabricated from A36 American steel.
- All parts are laser cut to ensure a perfect fit, then MIG welded.
- Powder coated for superior protection

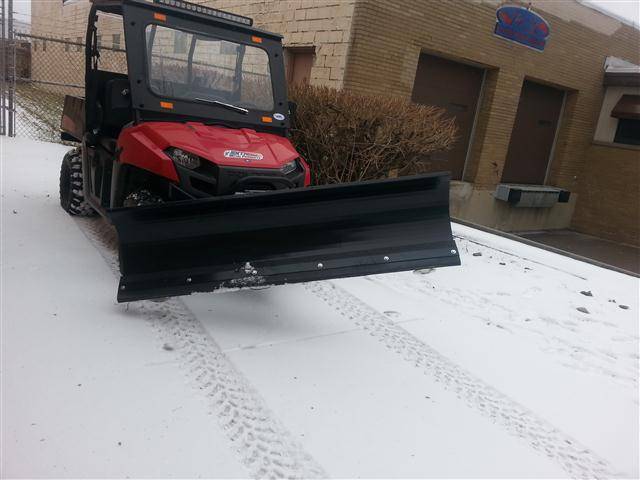

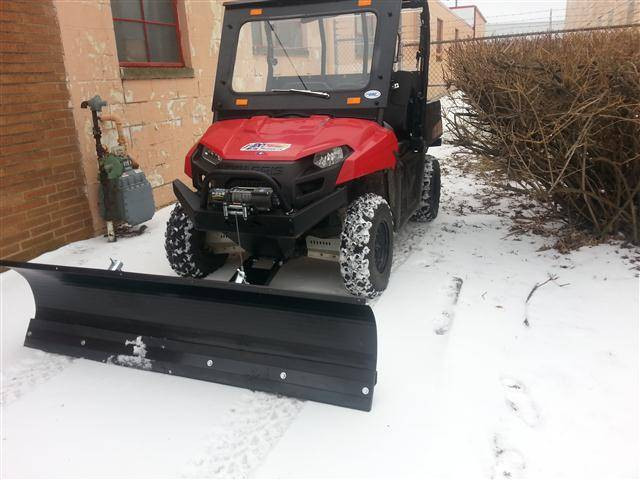

- Plow blade is 20" high and 72" wide.
- Plow frame is made from 1/4" and 3/8" thick steel.
- Attaches in less than a minute with two hitch pins.
- Plow raises and lowers with your winch.
- Includes: Can-Am Maverick mounting plate.
- Includes plow shoes.
- Plow blades are 20" high (higher than others) and 72" wide.
Fits: 2011-2021 Mid-Size / 2-seat Rangers Only (not full size)
