Polaris Ranger XD 1500 Atlas Pro 1" Forward Offset A-Arms

Heavy-Duty A-Arms for Your Ranger XD 1500

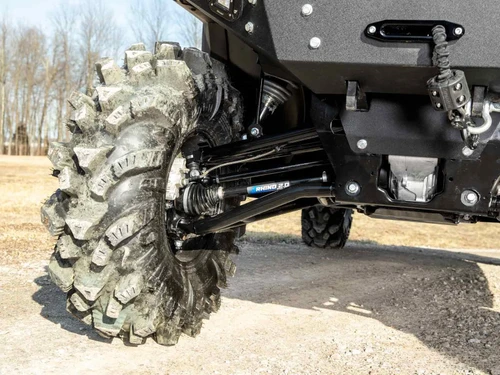

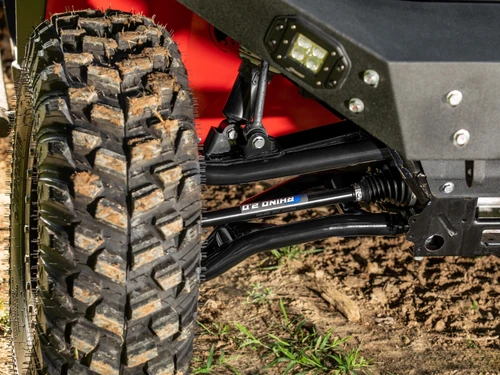

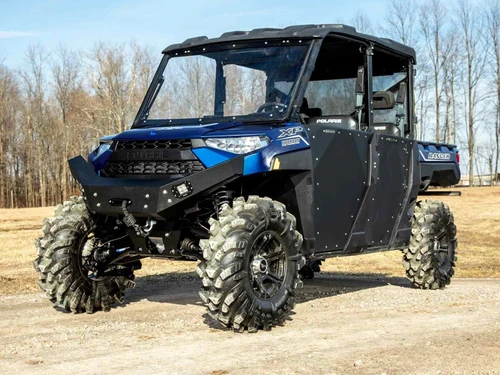

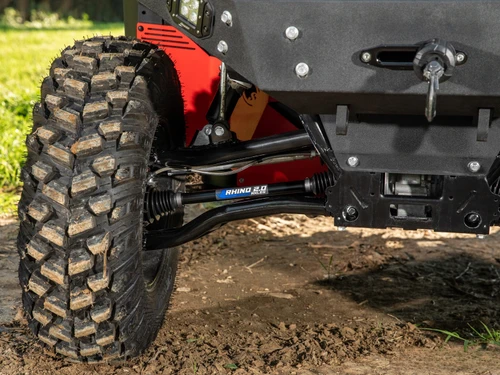

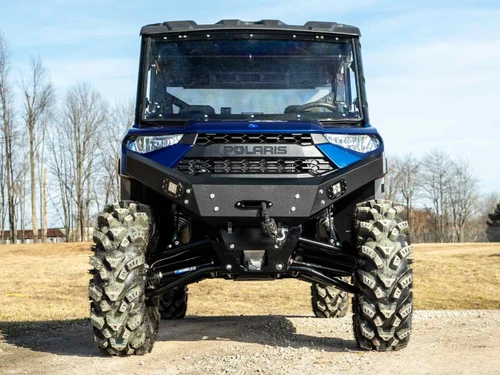

Tackle tough terrain with ease when you install SuperATV’s Atlas Pro 1" Forward Offset A-Arms on your Polaris Ranger XD 1500. You’ll be able to ride without getting caught on logs or other debris. You also have the ability to run up to 34” tires. Plus, they have a UV-resistant powder coat finish.

No Lift Kit Needed
You heard us right—you don’t need a lift kit to run bigger tires. With our Atlas Pro 1" Forward Offset A-Arms, you can run up to 34” tires. The longer wheel base also gives you a more stable ride. You’ll glide over debris without worry of getting caught.

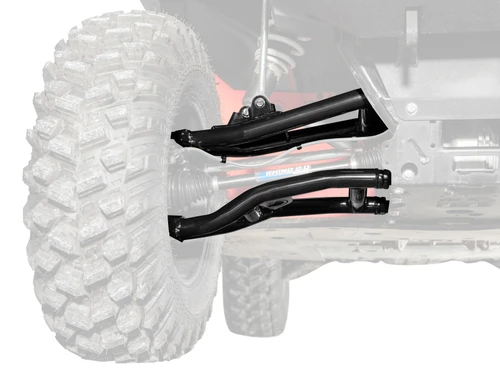

Ultra-Strong A-Arms

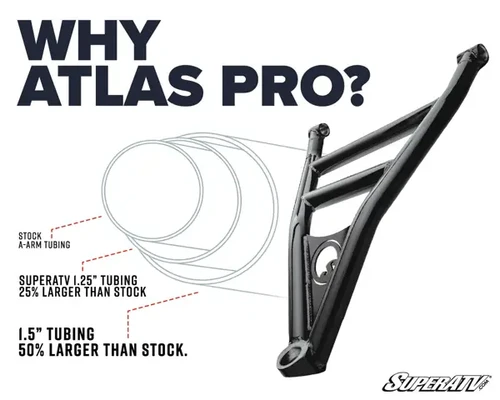

Our beefy A-arms are made of steel DOM tubing. The main tubes are 1.5” x .25” while the supporting tubes are 1.5” x .13”. They’re significantly larger than stock arms, providing extra strength to handle the roughest conditions. We included our self-lubricating UHMW bushings as well. They ensure a smooth, low-maintenance ride that lasts for years.

Adjusting Is Easy
Our Atlas Pro 1" Forward Offset A-Arms come with top-of-the-line adjustable pivot blocks, giving you full control over your alignment and camber. This means you can prevent premature wear on your tires that can happen when you add larger tires or a lift kit. We preadjust to stock specs so you don’t have to fiddle with them—unless you want to!

Preassembly Makes Installation Easier
Let’s be real—removing your ball joints from your old A-arms can be a pain. Luckily, we offer the option to order these A-arms preassembled to save you some time and hassle.

NOTE: You must re-use your stock ball joints if you don’t select a pre-installed ball joint at checkout.

Heavy Duty Ball Joints
We designed our Heavy Duty Ball Joints for extreme performance. They’re made from hardened 4340 VAR steel with zinc plating for maximum durability. They feature easy-access grease zerks and are adjustable. They’ve been tested to withstand twice the pressure of OEM ball joints, so you can ride hard without worry.

Super Duty Ball Joints
We’ve crafted one of the strongest ball joints on the market using 300M grade steel and top-tier engineering. With an easy-access grease zerk and an adjustable steel-on-steel design, they’re built for easy maintenance and flexibility. They’re 2.25x stronger than stock—so this ball joint is as tough as it gets.

Keller Ball Joints
Keller Ball Joints have a two-piece design that eliminates the need for a snap ring. They thread directly onto your A-arms like a nut and bolt, making them nearly impossible to pull out. They’re built with a tough chromoly steel stud and an advanced tool-steel body, so they’re ideal for larger machines, bigger tires, and heavier rides. Plus, they’re greaseable and rebuildable, so you can keep them running smoothly for the long haul.

Machine Setup	Max Tire Size
Atlas Pro 1" Forward Offset A-Arms only	34”
Atlas Pro 1" Forward Offset A-Arms w/ 4” GDP Portals	34"
Atlas Pro 1" Forward Offset A-Arms w/ 6” Portals	35”
Atlas Pro 1" Forward Offset A-Arms w/ 8” Portals	38”
