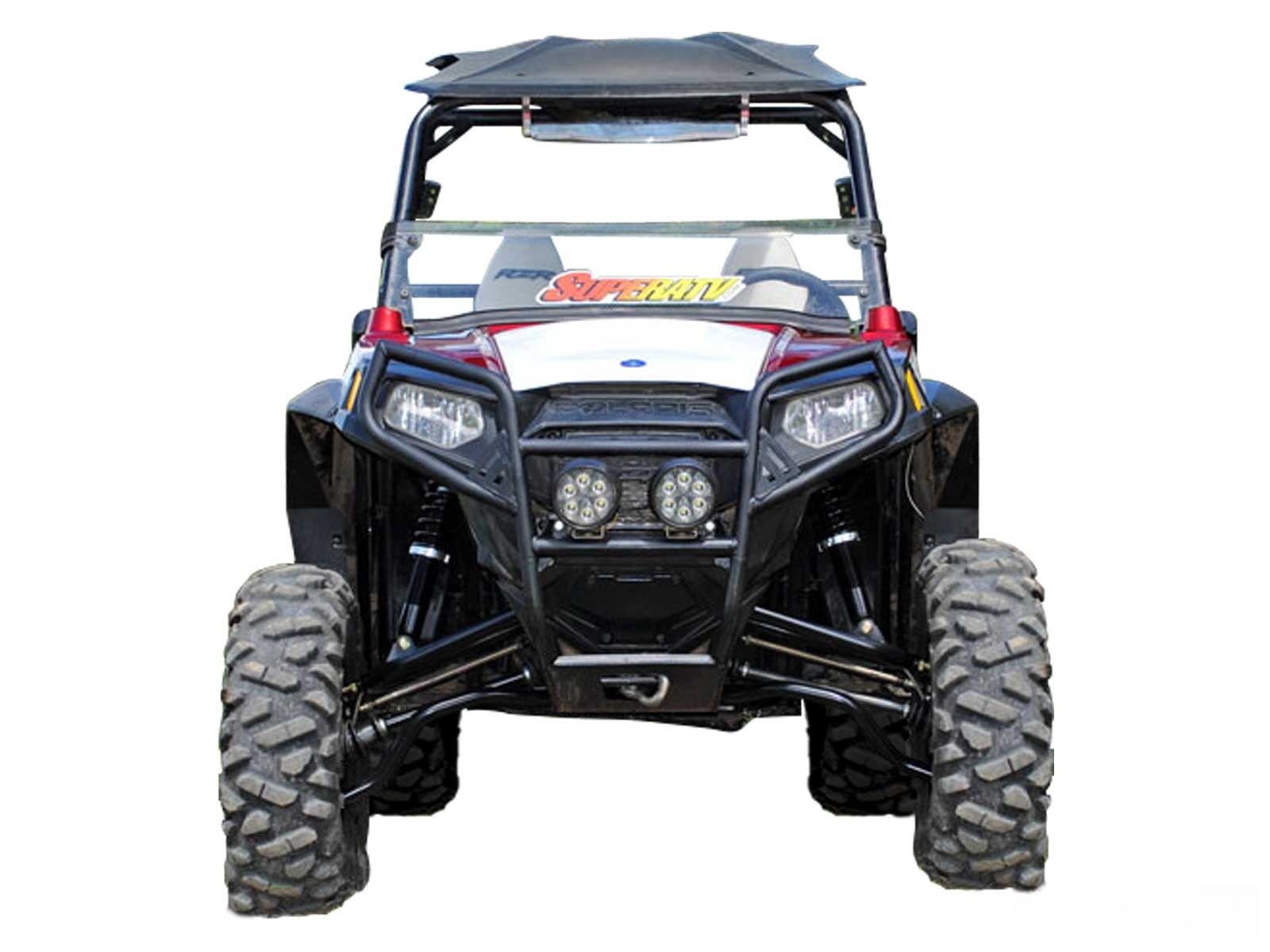

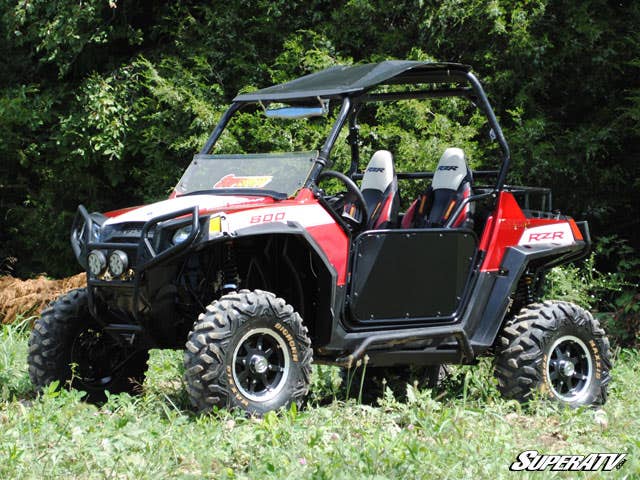

Go Big or Go Home
It’s time for your Polaris RZR 800 to move up in the world. SuperATV’s 5” Lift Kit measures true to size, giving you 5 inches of extra ground clearance and room for up to 30” tires. If that’s not the makeover your RZR 800 needs, we don’t know what is. Get lifted and get wild—you’ll be tearing through bounty holes and ripping through the trails in style!

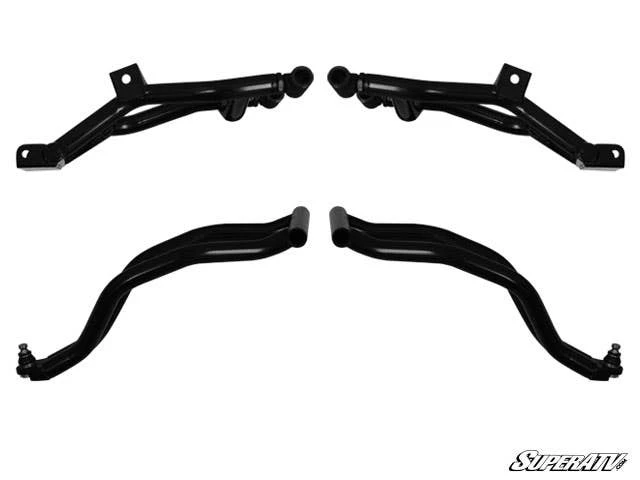

High Clearance A-Arms
We make our A-arms with 1.25” steel tubing for superior strength and performance. The design and tube bends give them 1.5” of additional high clearance. They’re beefy and backed by a lifetime warranty so you can push them as hard as you want.

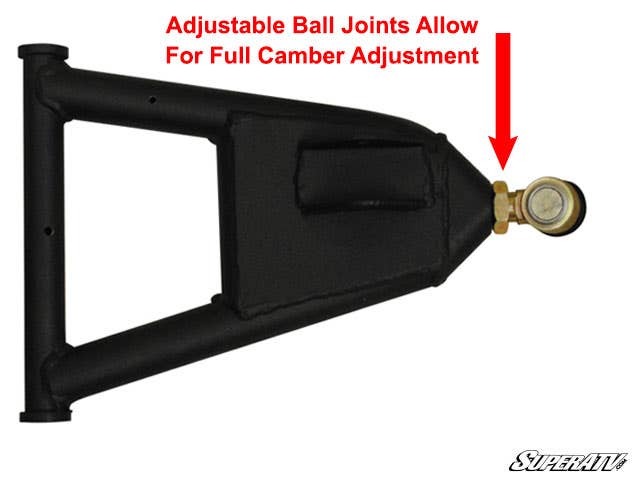

Adjustable Camber
This lift features adjustable A-arm pivot blocks in the rear and adjustable upper ball joints in the front. Why? Full camber adjustability! Why would you want to adjust your camber? Adjusting your camber means changing the tilt of your wheels, which means changing the way your UTV handles. Adding cargo or passengers can mess up your feel, but with our setup, you can dial in the perfect ride every time.
Comes with Rhino Brand Axles
We make Rhino Brand Axles with heavy-duty 4340 chromoly steel for superior strength and a longer fatigue life. We designed our CVs to eliminate a break-in period and give you higher articulation angles. Get lifted and ride with confidence knowing these Rhino Axles will take you through mud, dunes, and ditches.
Upgrade to Rhino 2.0 Axles
Upgrade to Rhino 2.0 Axles if you like to get rowdy (we know you do). Nothing else can stand up to the extreme angles and extreme riding you get with a 5” lift quite like Rhino 2.0. They use chromoly steel from end-to-end and feature maximized CV joints for higher articulation angles and unbeatable strength. Plus, they’re backed by an unbeatable 18-month warranty.
Backed by a Lifetime Warranty
All suspension components including tie rods, A-arms, trailing arms, radius arms, and lift brackets are backed by a lifetime warranty. Ride your UTV where you want the way you want — SuperATV’s got your back.
Kit Includes:
It’s time for your Polaris RZR 800 to move up in the world. SuperATV’s 5” Lift Kit measures true to size, giving you 5 inches of extra ground clearance and room for up to 30” tires. If that’s not the makeover your RZR 800 needs, we don’t know what is. Get lifted and get wild—you’ll be tearing through bounty holes and ripping through the trails in style!
High Clearance A-Arms
We make our A-arms with 1.25” steel tubing for superior strength and performance. The design and tube bends give them 1.5” of additional high clearance. They’re beefy and backed by a lifetime warranty so you can push them as hard as you want.
Adjustable Camber
This lift features adjustable A-arm pivot blocks in the rear and adjustable upper ball joints in the front. Why? Full camber adjustability! Why would you want to adjust your camber? Adjusting your camber means changing the tilt of your wheels, which means changing the way your UTV handles. Adding cargo or passengers can mess up your feel, but with our setup, you can dial in the perfect ride every time.
Comes with Rhino Brand Axles
We make Rhino Brand Axles with heavy-duty 4340 chromoly steel for superior strength and a longer fatigue life. We designed our CVs to eliminate a break-in period and give you higher articulation angles. Get lifted and ride with confidence knowing these Rhino Axles will take you through mud, dunes, and ditches.
Upgrade to Rhino 2.0 Axles
Upgrade to Rhino 2.0 Axles if you like to get rowdy (we know you do). Nothing else can stand up to the extreme angles and extreme riding you get with a 5” lift quite like Rhino 2.0. They use chromoly steel from end-to-end and feature maximized CV joints for higher articulation angles and unbeatable strength. Plus, they’re backed by an unbeatable 18-month warranty.
Backed by a Lifetime Warranty
All suspension components including tie rods, A-arms, trailing arms, radius arms, and lift brackets are backed by a lifetime warranty. Ride your UTV where you want the way you want — SuperATV’s got your back.

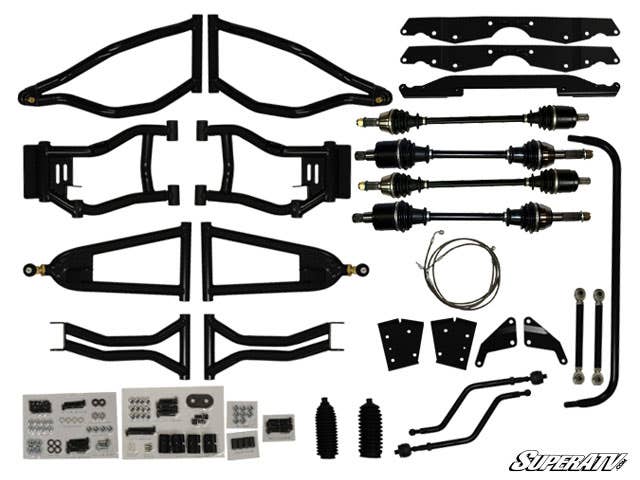

Kit Includes:
- Front and rear high clearance offset A-arms
- Front and rear shock brackets
- Sway bar links
- Sway bar assembly
- (4) SuperATV Axles (Rhino or Rhino 2.0)
- Heavy duty Z-bend tie rod kit
- Steering stop kit
- Extended brake lines
- All hardware and installation instructions
Features
- Fit up to 30” tires
- 1.5” front and rear offset for increased stability
- Made with 1.25" thick wall steel tubing
- Full camber adjustability
- Lifetime warranty on A-arms and brackets
- 100% stronger than stock
- Massive 4mm increase in size
- Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
- Field and lab tested for extreme strength and endurance
- CAD drawn for expert precision
- Industry leading 18-month warranty
- High articulation angles
- Industry leading 4340 chromoly shaft for unmatched longevity
- Precision engineered cage and housing for reduced friction and a smooth range of motion
- Synthetic grease to keep CVs cool each time you ride
- 1-year warranty
- All new high-clearance +1.5 A-arms
- 4 complete axles (with a 1 year warranty)
- Heavy-duty z-bend tie rods
- Full camber adjustability
- Swaybar and swaybar links
- Does not include ball joints
- 1-1/4" thick wall steel tubing
- Includes a FREE steering stop kit ($24.95 value)!
- Must re-use existing bushings or order new one's from SuperATV
- Lifetime warranty on A-arms
- All necessary hardware and installation instructions
Fitment
- Polaris RZR 800 2008-2014
