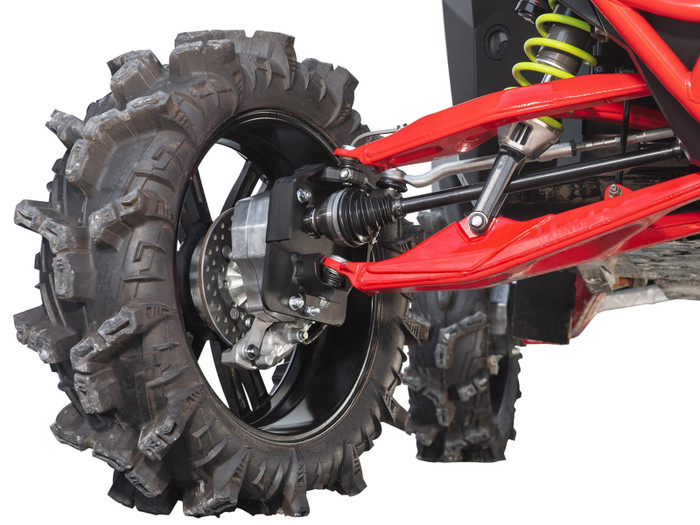

A 4" portal is the entry point to portal clearance on a Pro R. It adds ground clearance at the hubs, drops engine and drivetrain load with a 15% or 30% reduction, and still lets you run 38" tires on a stock suspension. Choose the housing and idler option that fits your budget and how hard you ride.
Highlights
- 4" of portal lift at the hubs
- 15% or 30% gear reduction
- Dual or single idler gearing
- Billet or cast aluminum housings
- 3/4" front and rear offset with dual idler (1.5" total extension)
- 1.5" 4340 hardened steel drive shaft
- 9310 alloy billet steel gears, CNC ground
- Universal hubs fit all major bolt patterns
- Limited lifetime warranty
Where a 4" Portal Fits
A 4" portal box is the smallest step in the line, and for many Pro R riders it is the right one. The wheel center drops four inches below the axle, which lifts the chassis, the differentials and the skid plate without bending the suspension geometry the way a spacer lift can. Because gear reduction is built into each hub, the axles, prop shaft and transmission turn less torque than they would moving the same tire through the stock ratio.
Idlers and Housings
Choose a single or dual idler setup. The dual option puts a second gear in each box so torque is shared across twice the tooth surface, and on this 4" kit it adds 3/4" of front and rear offset (1.5" total extension). Gears are CNC ground 9310 alloy for a clean mesh. Housings are available in cast aluminum or USA-made billet, and both are reinforced to keep gears located and to move oil where it is needed.
Sealing and Lubrication
Oil stays in because the boxes use gaskets or O-rings with good oil resistance, a sealed input gear, a double-lipped output seal and double angular-contact output bearings. Roller bearings on the idler and drive keep gear mesh consistent. The design has no vents, since the manufacturer found vented boxes caused more problems than they solved. Use the Portal Blood gear oil the company formulates for these boxes.
Ordering the Right Configuration
Three selectors set your price: housing (billet or cast), reduction (15% or 30%) and idler (dual or single). 15% preserves most of your stock speed and suits trail riders. 30% gives the pull to turn bigger tires and suits mixed mud. A separate instruction sheet covers each reduction, so keep your selections handy at install time.
Planning the Rest of the Build
On a 4" portal, stock A-arms are enough for 38" tires. To reach 42" the manufacturer calls for 1.5" forward-offset A-arms. Beyond clearance, bigger tires load axles harder, so a strong axle is a good partner. Turner and Gorilla axle owners need a different recessed nut; Rhino, ADR and OEM axles use the nut supplied.
Tire Size and Wheels
Maximum tire size, measured at full compression and full turn, is 38" tires on a stock suspension. 42" tires with 1.5" forward-offset A-arms. Trimming or a little rub can allow larger tires. Wheel requirements for this kit: 15" or larger wheels; 15" wheels cannot exceed 4-1/2" backspacing; 20" and larger wheels cannot exceed 5" backspacing. A 1.25" wheel spacer must be used with stock wheels.
Support and Warranty
The 4" kit is covered by the manufacturer's limited lifetime warranty, and a dedicated portal support team can help you choose a reduction or troubleshoot an install.
Who Should Choose the 4" Kit
Pick the 4" portal if you want real ground clearance and gear reduction but do not need the biggest tires. It suits trail riders, hunters and farm users who want the machine to climb steps and cross ruts without a long-travel rebuild. It is also the logical first step if you may grow the build later, because the hub, rotor and brake components are the same family as the taller kits.
Hubs, Rotors and Brakes
The kit includes four universal hubs and four precision-ground stainless steel slotted rotors with lugs, so the brake path is rebuilt with the portal. Steel caliper mounting plates with spacers hold the calipers in their new position, and extended brake lines with parking brake and cable brackets keep the hydraulic and parking systems intact. Two steel steering arms correct the steering geometry for the new hub height.
Fit and Wheel Notes
Fits Pro R and Pro R 4, 2022+. You need wheels 15" or larger. A 15" wheel cannot exceed 4-1/2" of backspacing, while 20" and larger wheels cannot exceed 5". If you are keeping stock wheels, a 1.25" wheel spacer is required. Check wheel offset before you buy so the tire does not hit the portal housing.
Installation Overview
Work in a clean shop with the machine well supported. The sequence is to remove the wheels and hubs, bolt on the backing plates and portal boxes, install the steering arms and calipers, replace the brake lines, fill each box with gear oil and torque the axle nuts. Take your time bleeding the brakes and recheck bolts after the first ride.
What's in the Box
- (4) Assembled portal hub boxes with 9310 gears, seals, output shaft, gaskets and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates with spacers
- (2) Steel steering arms
- Extended brake lines with parking brake and brake cable brackets
- All required hardware, including a recessed castle nut socket
Who It's For and What Pairs Well
Pair these portals with the Pro R heavy-duty axle, an HC billet radius arm and a Pro R full skid plate. Compare the other sizes: the 4" portal, 6" portal and 8" portal. Turner or Gorilla axles need the recessed nut kit. Browse Pro R lift kits.
Common Questions
Which gear reduction should I pick?
Pick 15% to keep stock-like speed and still add torque, or 30% for larger tires and mixed mud.
Does it fit the four-seat Pro R 4?
Yes. The fitment chart lists the Pro R and Pro R 4, 2022+.
Fitment
| Year | Make | Model |
|---|---|---|
| 2022+ | Polaris | RZR Pro R |
| 2022+ | Polaris | RZR Pro R 4 |
Wheel Requirements
- 15” or larger wheel required
- 15” wheels cannot exceed 4-1/2” backspacing
- 20” and larger wheels cannot exceed 5” backspacing
- 1.25” wheel spacer must be used with stock wheels
Covered by the Trailworx UTV Parts Fitment Guarantee: if this 4" portal gear lift doesn't fit the Polaris RZR Pro R model and year you select, you get a full refund, prepaid return shipping and no restocking fee.
Installation Notes
This is a hub-for-hub swap, not a bolt-on spacer. Follow the PDF for your reduction, fill each box to the specified oil level, and torque the castle nuts with the supplied socket.
