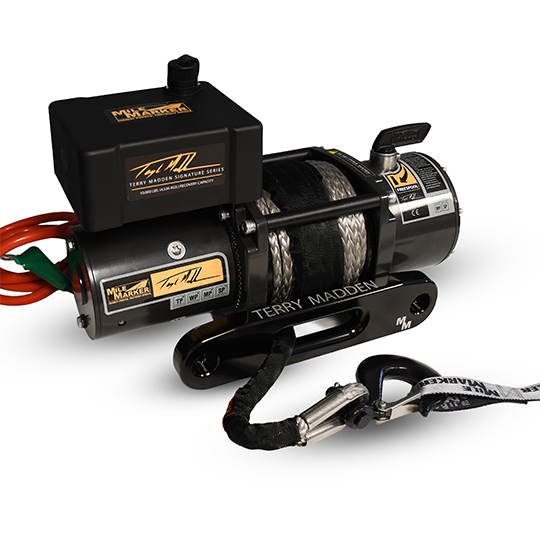

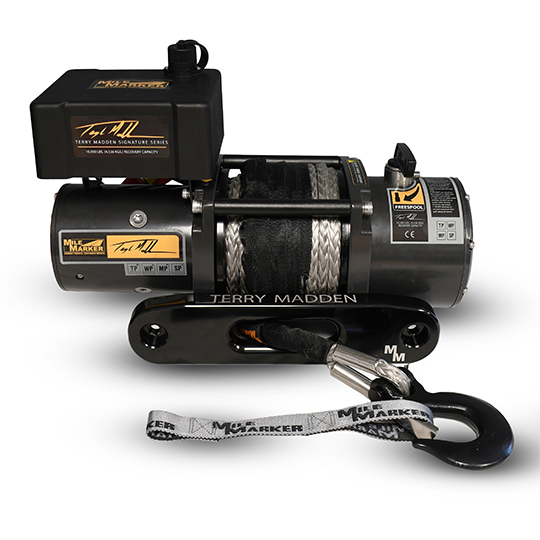

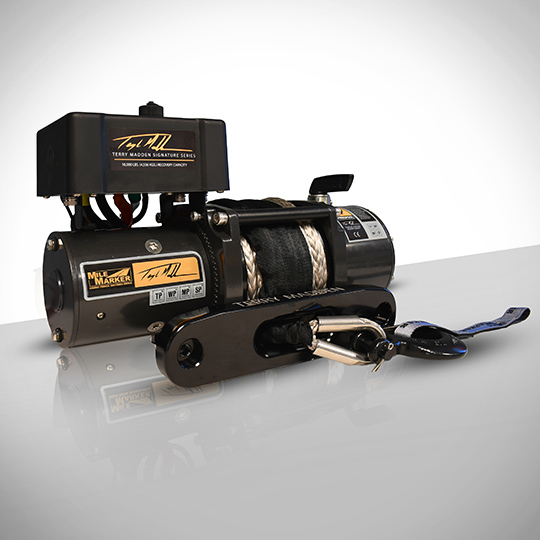

At a lightweight 54 lbs, and rated for 10,000 lbs of pulling power, the Terry Madden Signature Series winch is ideal for intense competition.
The Mile Marker Terry Madden Signature Series winches are designed for the rigorous demands of rock crawling competitions and provide exceptional features for competitors by offering the flexibility to pull from the 1st or 4th layer. These lightweight winches operate efficiently with minimal power consumption, ensuring reliable performance.
Engineered with meticulous attention to detail, the Terry Madden Signature Series includes soldered wire connections within the control box and a separate plug for dash mount controls, catering to the specific needs of racing enthusiasts.
Weighing just 54 lbs and rated for 10,000 lbs of pulling power, these compact winches deliver a combination of maximum power, efficiency, and reliability making them the preferred choice for rock crawlers seeking top-notch equipment.
Note: Some vehicles may require a specific mounting system to be compatible.

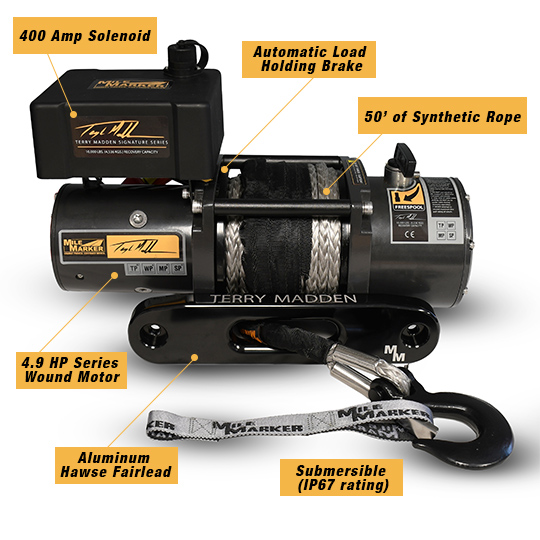

Features
•4.9 HP Series Wound Motor
•All Metal Planetary Gearing
•Submersible (IP67 rating)
•400 Amp Solenoid
•Automatic Load Holding Brake
• Fast Line Speed
• 50' of Synthetic Rope
• Aluminum Hawse Fairlead
•Dash Mount Switch
• Racing Inspired
| Rated Line Pull | 10,000 lbs (4,536 kgs.) single line |
| Gear Ration | 210:1 |
| Motor | 12 Volt DC, input power 4.9 HP |
| Dimensions (LxWxH) | 16.8"" x 6.3"" x 7.8"" |
| Synthetic Rope | 3/8"" x 50' |
| Drum Size Diameter X length | 2.64"" x 4.31"" |
| Net Weight | 54 lbs. |
| Bolt Pattern | 4 bolt pattern, 4.5"" x 6"" |
