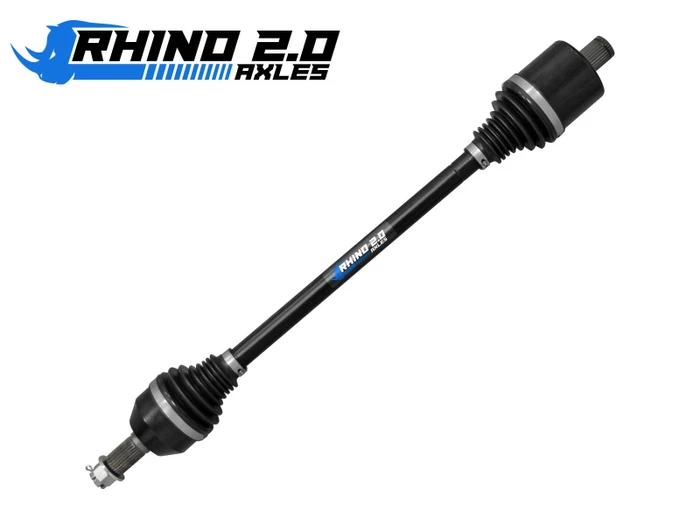

Can-Am Maverick X3 Rhino 2.0 Axle for 6" Lift Kit, 4340 Chromoly, 64"

A 6" lift puts the Can-Am Maverick X3's axles at steeper angles than stock axles can handle for long. This Rhino 2.0 big lift kit axle is the extended-length answer for the Maverick X3 6" lift kit. It's twice as strong as stock, with a larger shaft and maximized CV, spider, and cage, made from heat-treated 4340 chromoly, and it runs at 40°+ CV angles without overheating. It's built to take years of abuse and carries an 18-month warranty.

Highlights

• Extended axle length to match the 6" lift
• 4340 chromoly with a proprietary heat treatment
• Larger shaft and CV components, 4mm larger
• High articulation angles of 40°+ without overheating
• 18-month warranty

Built for the 6" Lift

This axle is made for the Maverick X3 6" lift kit, and it's bigger and stronger than a stock axle so it can handle the lifted geometry. The shaft, CV, spider, and cage are maximized so it won't break, and it can run at 40° and greater angles without overheating. Beat on it day in and day out with your lift, and it will keep going.

The Rhino 2.0 Formula

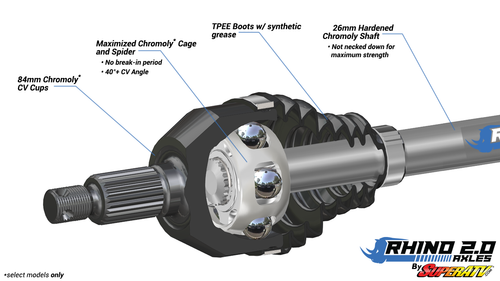

Rhino 2.0 combines size, material, and heat treatment. The axle is 4mm larger, it's constructed from 4340 chromoly steel, and a proprietary heat treatment gives the right balance of strength and longevity. The result is 100% stronger than stock. It's field and lab tested for strength and endurance, and CAD drawn for precision.

Strong Value

Many "heavy-duty" axles that cost $550 to $900 don't stand up to Rhino 2.0 in strength and fatigue testing, and Rhino 2.0 costs a fraction of that. The 18-month warranty adds to the value.

Before You Order

This axle only works with the Maverick X3 6" lift kit. It does not fit X RS or 72" models, and 1" wheel spacers are required when running stock wheels. Choose front driver side, front passenger side, or rear, and pick Smart-Lok or non-Smart-Lok to match your machine. Axles are sold individually.

Features and Specs

• 100% stronger than stock
• Operates at 40°+ CV angles
• 4mm increase in size
• 4340 chromoly steel with proprietary heat treatment
• Field and lab tested
• 18-month warranty

Who It's For and What Pairs Well

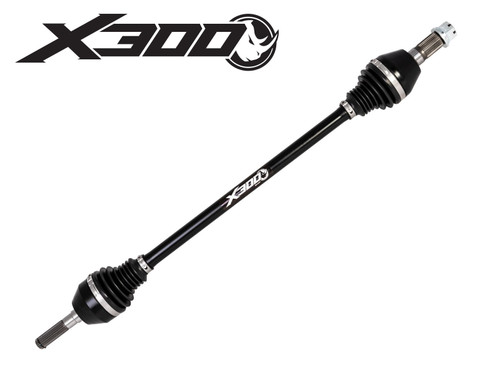

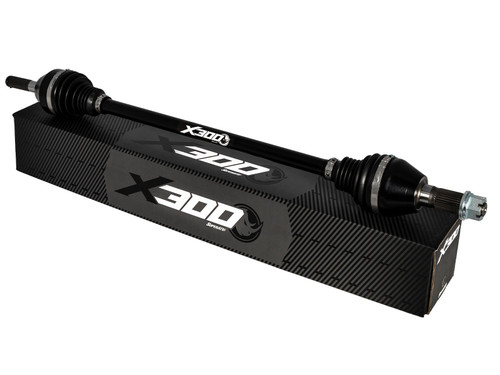

This axle is for 64" X3 owners running the 6" lift from Can-Am Maverick X3 lift kits. Add 1" spacers from X3 wheels and spacers if you're on stock wheels, consider track bars for front support, and compare the X300 option in Maverick X3 axles.

Fitment

• Does NOT fit X RS or 72" models
• 1" wheel spacers required when running stock wheels

Choose axle location and Smart-Lok or non-Smart-Lok when you order.
