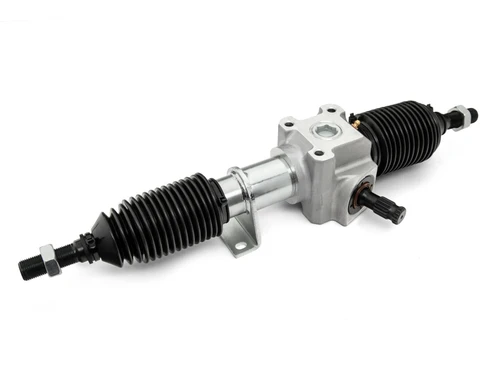

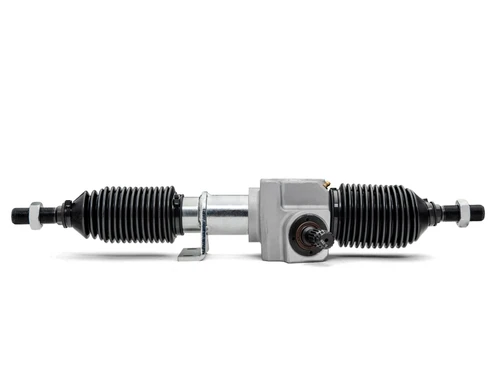

RackBoss 2.0 Is a New Kind of Rack
Your steering rack will eventually wear down, your steering will get sloppy, and your handling will be unresponsive.. and there used to be nothing you could do about it. RackBoss 2.0 changes all that because it’s the only rack on the market that uses X24 Tech—our unique dual-bushing design that reduces wear by over 50% compared to stock. So accept nothing less than SuperATV’s Polaris RZR S 900 RackBoss 2.0 Rack and Pinion to get durability you can’t find anywhere else no matter how you ride.
Less Wear and Tear with Our Dual-Bushing Design
What makes RackBoss 2.0 so good at preventing slop? It’s engineered with X24 Tech—heavy-duty PTFE bushings at both ends of the rack that remove play from the internals. Reducing play also keeps the tension spring nearly motionless. With little to no unintended internal movement, this rack can turn massive tires through heavy rides and hard hits and still stay in like-new condition for years longer than the next best rack. And with the built-in grease fitting, you can push fresh grease through after you go deep in mud or water.

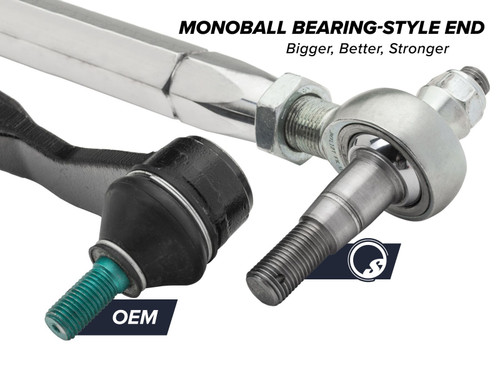

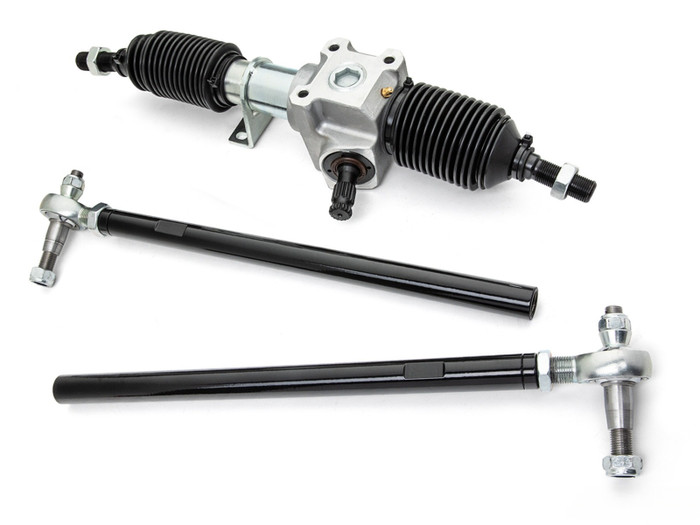

Solid Steel Bar Tie Rods
For a beefy tie rod setup, you want to go with solid steel bar tie rods. They’re made with 1” diameter steel bars that are paired with bigger, better tie rods you’ll love—3/4” outer heim joint tie rods and rebuildable inner tie rods that use 3/4” rod threads and 16 mm rack threads. Altogether, they’re built for hard hits, big tires, and wild rides.
Swaged Tube Tie Rods
Our swaged tube tie rods are tough but lightweight. The flared out steel tube design boosts the strength beyond what a standard 7/8” tube would have. Plus, it comes paired with our unbeatable tie rod ends that use 16 mm rack threads and huge 14 mm rod threads. They won’t let you down.
Patent No. 11,345,393
Your steering rack will eventually wear down, your steering will get sloppy, and your handling will be unresponsive.. and there used to be nothing you could do about it. RackBoss 2.0 changes all that because it’s the only rack on the market that uses X24 Tech—our unique dual-bushing design that reduces wear by over 50% compared to stock. So accept nothing less than SuperATV’s Polaris RZR S 900 RackBoss 2.0 Rack and Pinion to get durability you can’t find anywhere else no matter how you ride.
Less Wear and Tear with Our Dual-Bushing Design
What makes RackBoss 2.0 so good at preventing slop? It’s engineered with X24 Tech—heavy-duty PTFE bushings at both ends of the rack that remove play from the internals. Reducing play also keeps the tension spring nearly motionless. With little to no unintended internal movement, this rack can turn massive tires through heavy rides and hard hits and still stay in like-new condition for years longer than the next best rack. And with the built-in grease fitting, you can push fresh grease through after you go deep in mud or water.
Solid Steel Bar Tie Rods
For a beefy tie rod setup, you want to go with solid steel bar tie rods. They’re made with 1” diameter steel bars that are paired with bigger, better tie rods you’ll love—3/4” outer heim joint tie rods and rebuildable inner tie rods that use 3/4” rod threads and 16 mm rack threads. Altogether, they’re built for hard hits, big tires, and wild rides.
Swaged Tube Tie Rods
Our swaged tube tie rods are tough but lightweight. The flared out steel tube design boosts the strength beyond what a standard 7/8” tube would have. Plus, it comes paired with our unbeatable tie rod ends that use 16 mm rack threads and huge 14 mm rod threads. They won’t let you down.
| RackBoss 2.0 Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod | |
| X24 Tech Dual-Bushing Design | ✔ | ✔ |
| Inner Ball and Socket Thread Diameter | 14 mm rod threads, 16 mm rack threads | 3/4” rod threads, 16 mm rack threads |
| Outer Tie Rod End Thread Diameter | 14 mm | 3/4” |
| Tie Rod Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
| Inner Boots | ✔ | ✔ |
| Steering Stop Kit | ✔ | ✔ |
| Misalignment Bushings, Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
Features
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall durability
- Solid steel tie rods use:
- 3/4” outer tie rod ends
- Rebuildable inner tie rod ends that use 3/4” rod threads and 16 mm rack threads
- Swaged tube tie rods use:
- 14 mm outer tie rod ends
- Rebuildable inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
- 65% larger housing than stock
- Over 50% less wear than OEM after 15,000 cycles
- Grease fitting for rack gears
Fitment
- Polaris RZR S 900 2015+
- Polaris RZR 900 4 2015-2018
- Polaris RZR S4 900 2018
