A 3" lift is the sweet spot for many Polaris RZR XP Turbo owners: enough extra ground clearance to cross bigger obstacles and run up to 32" tires, without the cost and complexity of new arms and axles. This 3" Lift Kit measures true to size, bolts on with high-strength CNC laser-cut and brake-press-bent steel brackets, and keeps the factory steering radius and suspension travel. It's built for the 2016-2017 Turbo with Fox shocks and the 2018 Turbo with Walker Evans shocks, in both XP Turbo and XP 4 Turbo, and carries a lifetime warranty.
Highlights
- A full 3" of lift
- Run up to 32" tires
- High-strength CNC laser-cut, brake-press-bent steel brackets
- Powder-coated finish
- Maintains steering radius and suspension travel
- Bolt-on design for easy installation
- Lifetime warranty
Cover More Ground
Extra ground clearance makes everything easier. Whether you're climbing hills, crawling rocks or pushing through mud, the added height keeps you from hanging up on obstacles that stop a stock machine. It also opens up room for bigger tires, and the combination of height and tire size makes the Turbo far more capable.
No Sacrifice in Handling
Some lifts ruin the turning radius. This kit is engineered to keep the Turbo's turning radius and smooth handling, so the machine still drives like a RZR, just taller.
Bracket Lift vs. Bigger Builds
A bracket lift like this raises the machine by relocating the shock mounts, so it keeps your factory arms, shocks and axles. That keeps cost and install time down, and makes it a good first step. If you later want to go past 32" tires, the next steps are a taller lift with high-clearance arms or a portal gear lift, which also adds gear reduction to turn the bigger tires.
Built to Last
The powder-coated steel brackets are built to take every level of trail punishment, and the kit is backed by a lifetime warranty, so you can ride it as hard as you want.
Choosing Your Kit
Select by shock type and year: Fox for 2016-2017 models, or Walker Evans for 2018 models. Check the shocks on your machine before ordering, because the brackets are specific to each.

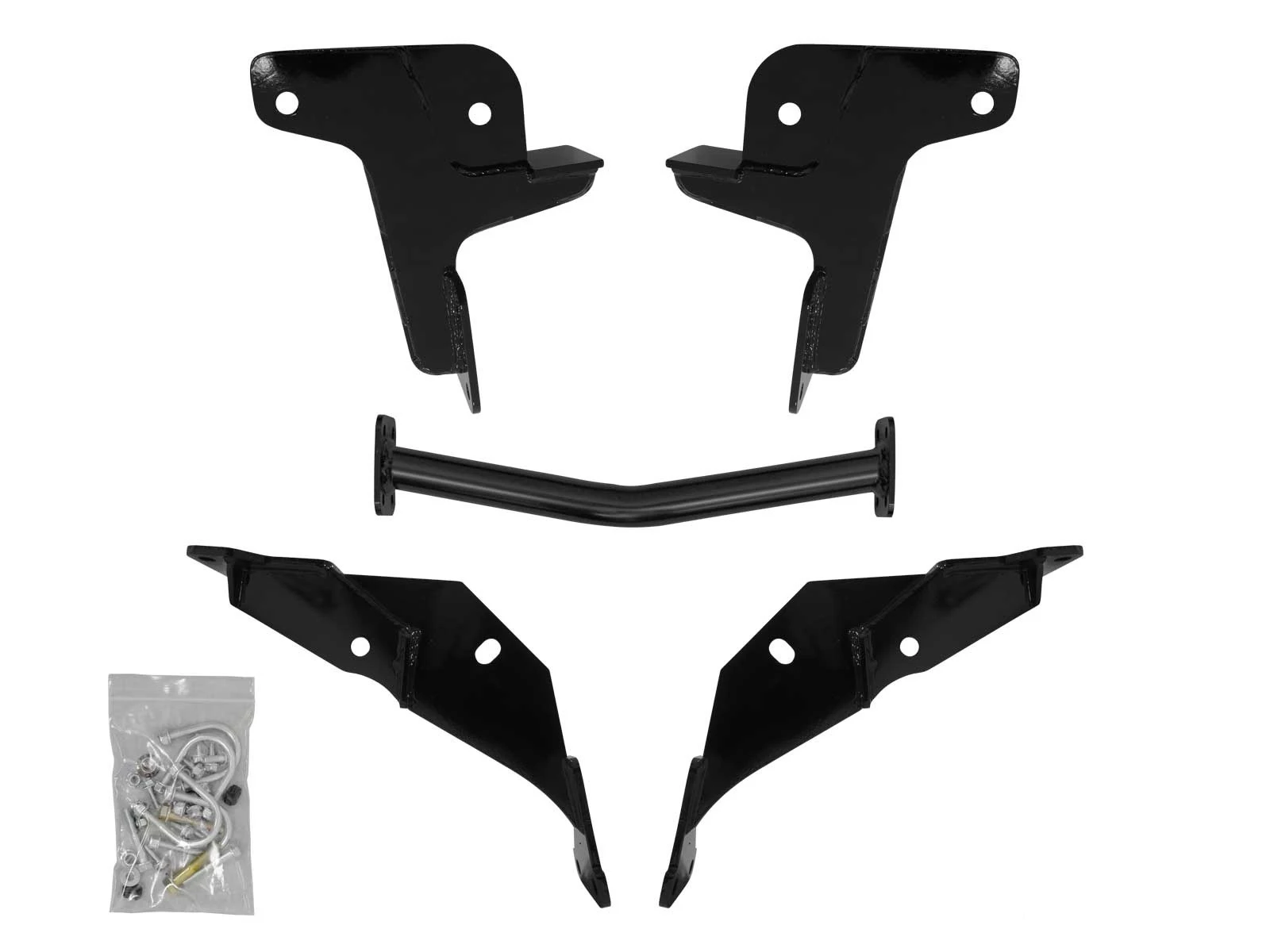

What's in the Box

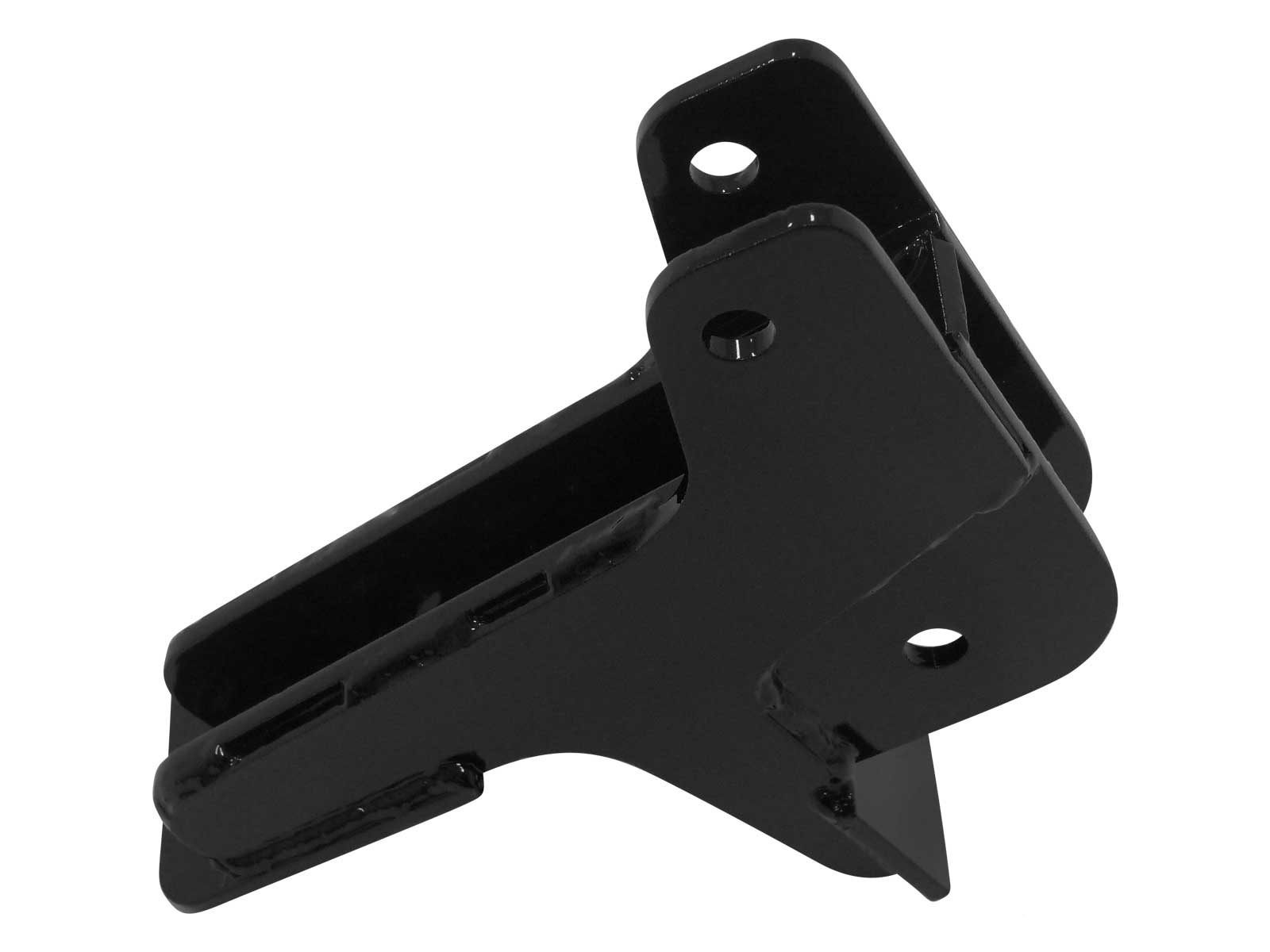

- Front shock brackets

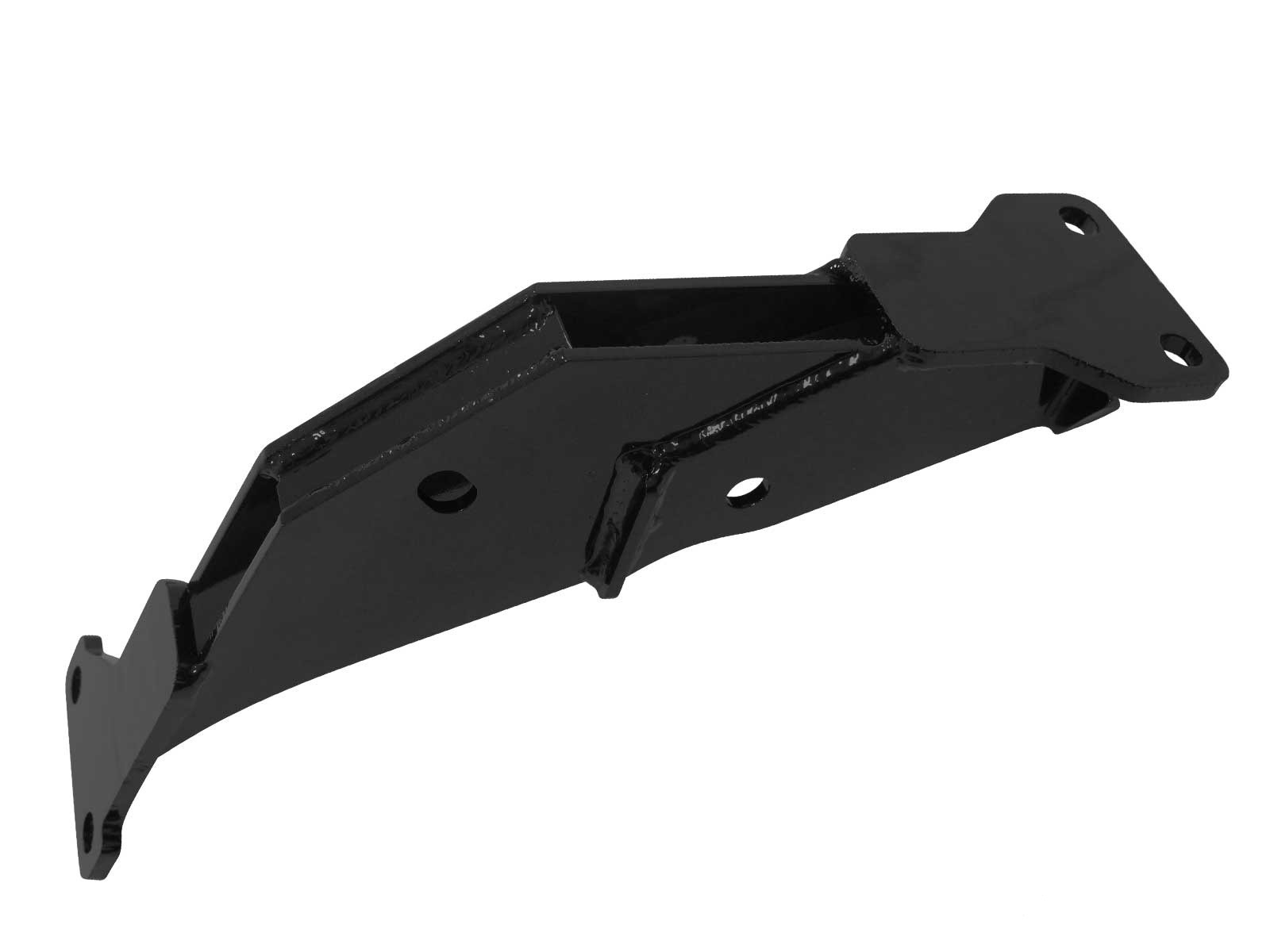

- Rear shock brackets
- Front cross brace
- All required hardware and instructions
Who It's For and What Pairs Well
This kit is for 2016-2018 Turbo owners who want more clearance and up to 32" tires on stock arms. With stock wheels you'll need 1" wheel spacers; see RZR XP Turbo wheel spacers. Add stronger axles from RZR XP Turbo axles and CVs and protect the underside with RZR XP Turbo skid plates. For more height, see RZR XP Turbo portal gear lifts.
Fitment
| Year | Make | Model |
|---|---|---|
| 2016-2018 | Polaris | RZR XP Turbo |
| 2016-2018 | Polaris | RZR XP 4 Turbo |
Note: If running stock wheels 1" wheel spacers are required.
Installation Notes
The kit bolts onto the shock mounts with the supplied brackets and front cross brace. Several instruction versions are linked; use the one that matches your kit part number. Check alignment after installing.
