The Pioneer 1000 is a do-everything machine, and a winch makes it better at all of it. This kit pairs the Viper MA11818 Pioneer 1000 mount plate with your choice of Viper V3 winch, either the 4,500 lb standard spool or the 6,000 lb wide spool. The plate takes both bolt patterns.
Why It Works on a Pioneer 1000
- MA11818 plate built for 2016-2021 Pioneer 1000 models, all trims.
- Takes standard and wide 4-bolt patterns, so either V3 bolts on.
- The 6,000 lb wide spool is a good match for a five-seat Pioneer 1000-5 with a loaded bed.
- Synthetic rope is safer than steel cable if it ever breaks under load.
- Black powder-coated steel with all hardware.
4,500 or 6,000 lb?
- V3 4,500 standard spool: lighter and shorter, with 40 ft of rope. Plenty for self-recovery and lifting a Denali plow on most machines.
- V3 6,000 wide spool: adds $80, a wider drum and 60 ft of rope. A good pick for heavier machines, crew cabs with a loaded bed, or anyone who winches other people out.
Using the Winch Around the Farm
- A tree strap and a snatch block turn the Pioneer into a light-duty skidder for small logs and brush.
- When lifting a Denali plow, keep a few wraps of rope on the drum and stop before the blade hits the top.
- Rinse road salt off the winch and mount after winter use.

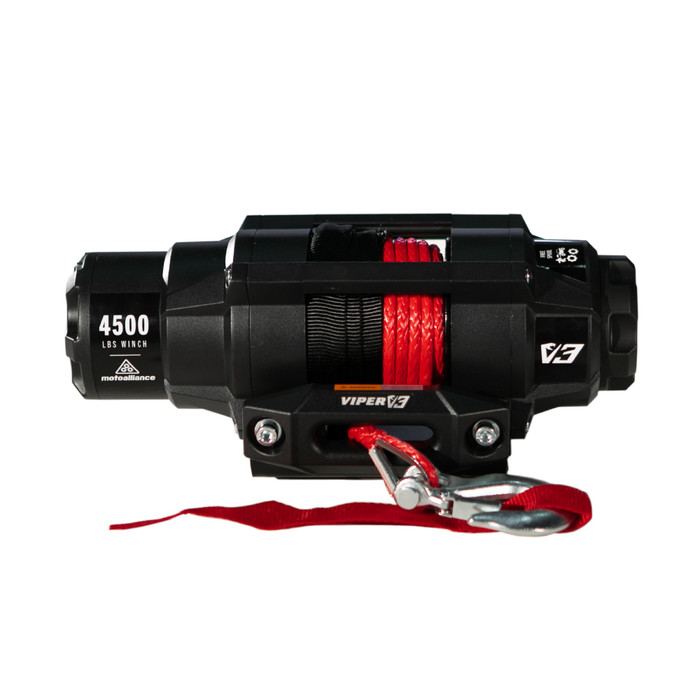

Viper V3 Winch Specifications
- Motor: 12V DC sealed permanent magnet
- Gear train: 3-stage planetary metal gears
- Brake: automatic, 100% load holding
- Clutch: sliding ring gear
- Wiring: 6 gauge; tie rods, fairlead hardware and motor terminals are stainless steel
- Sealing: IP67 waterproof rating per Moto Alliance; corrosion-resistant aluminum housing
- Wireless remote with its own frequency, plus a rocker handlebar switch and dash switch
- Manufacturer warranty: limited one year on the winch, 6 months on the rope
- V3 4,500 standard spool: 40 ft x 1/4 in. synthetic rope, 3.0 x 4.875 in. bolt pattern, 13.3 x 4.75 x 4.6 in., 17 lb
- V3 6,000 wide spool: 60 ft x 1/4 in. synthetic rope, 3.0 x 6.6 in. bolt pattern, 15 x 4.75 x 4.6 in., 18 lb
Fitment
| Year | Make | Model |
|---|---|---|
| 2016-2021 | Honda | Pioneer 1000 (all models) |
Note: Moto Alliance lists this mount for 2016-2021 Pioneer 1000 models only.

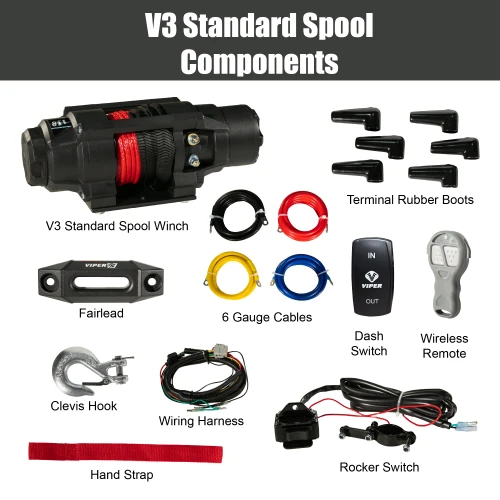

What's in the Box

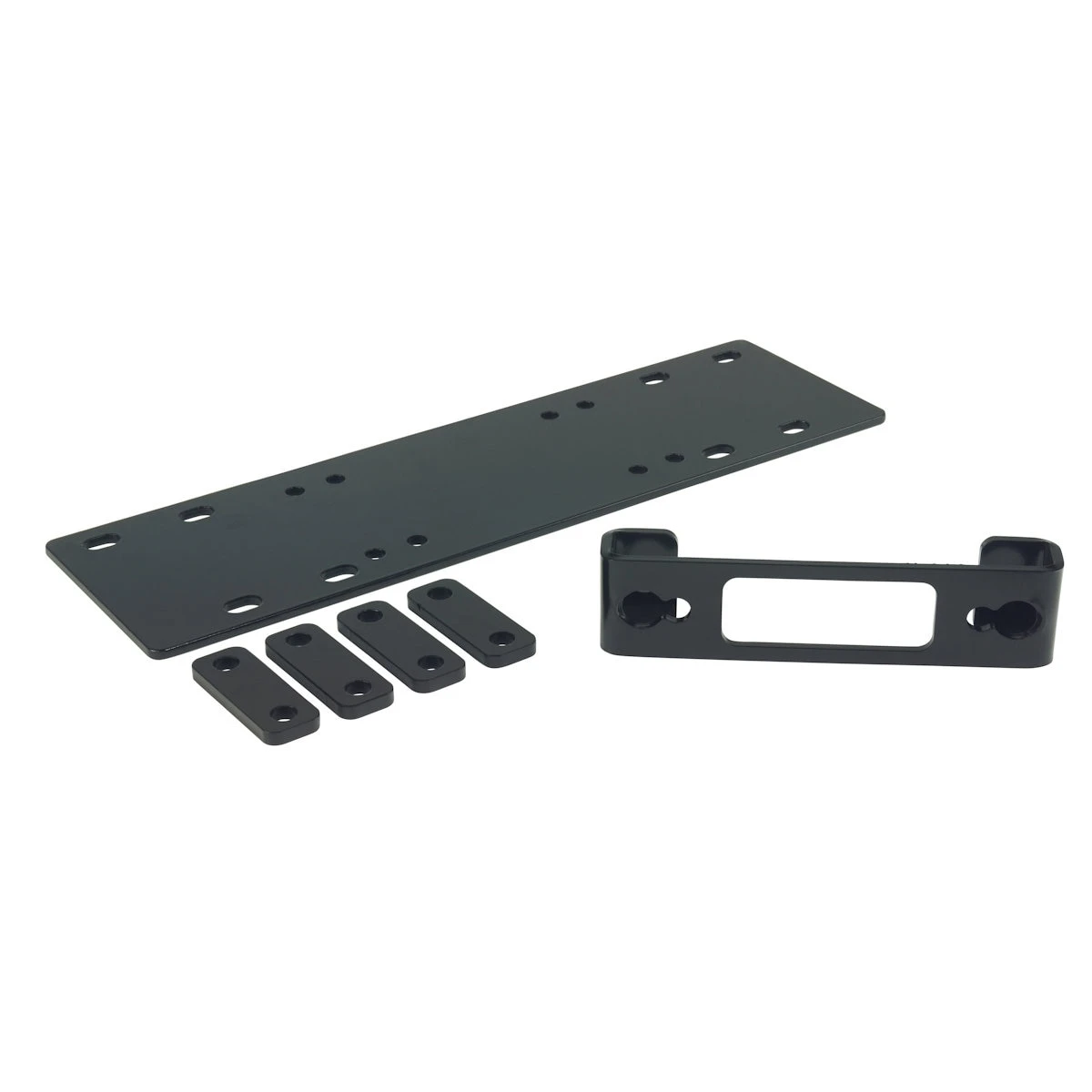

- Viper MA11818 winch mount plate with mounting hardware and instructions
- Viper V3 winch in your choice of rope color
- 40 ft or 60 ft x 1/4 in. synthetic rope, aluminum hawse fairlead and clevis hook
- Wireless remote, rocker handlebar switch and dash switch
- Contactor and wiring, hand saver strap, and installation hardware
Who It's For and What Pairs Well
This kit is for Pioneer 1000 owners on farms, hunting ground and snowy driveways. Pair it with a Honda Pioneer Denali snow plow kit or a Pioneer bumper, and find more in Honda Pioneer recovery gear.
Installation Notes
Install the MA11818 plate following the PDF with the included hardware. Route the power leads and contactor away from exhaust heat. Spool the rope under light tension after install.
