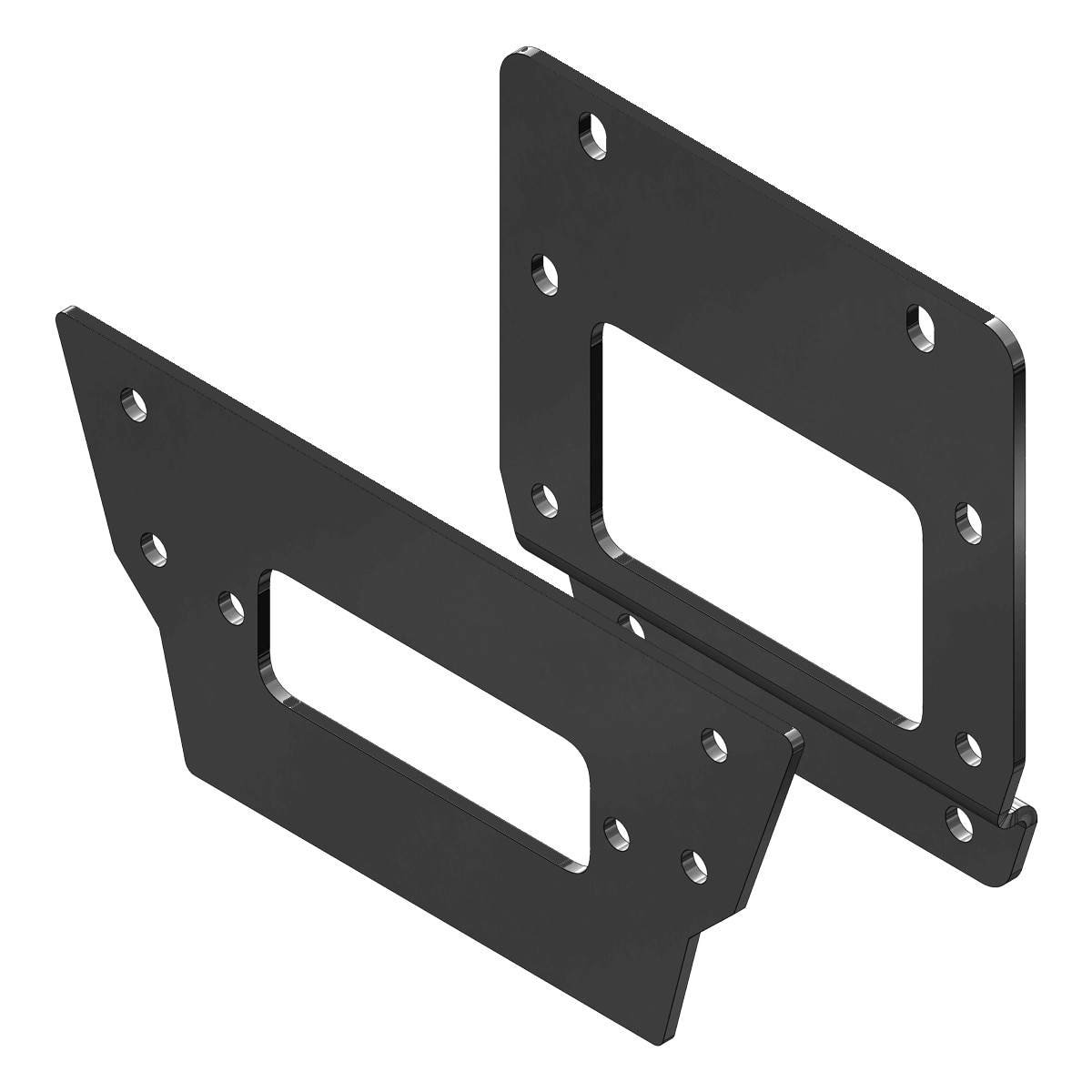

The KRX 1000 was built for technical trails, and technical trails are where you need a winch. This kit pairs the Viper MA11835 KRX mount plate with your choice of V3 winch, the 4,500 lb standard spool or the 6,000 lb wide spool. Moto Alliance lists the plate for standard or wide bolt patterns.
Why It Works on a KRX
- MA11835 plate made for the 2020-2026 KRX 1000 front end.
- Works with standard or wide bolt patterns, so both V3 sizes fit.
- The 6,000 lb wide spool gives extra margin on a heavier KRX4.
- IP67-sealed V3 body for water crossings and mud.
- Black, blue or red synthetic rope.
4,500 or 6,000 lb?
- V3 4,500 standard spool: lighter and shorter, with 40 ft of rope. Plenty for self-recovery and lifting a Denali plow on most machines.
- V3 6,000 wide spool: adds $80, a wider drum and 60 ft of rope. A good pick for heavier machines, crew cabs with a loaded bed, or anyone who winches other people out.
Trail Tips for KRX Owners
- Pack a snatch block to double pull power on a stuck four-seater.
- Keep five or more wraps on the drum.
- Use a tree saver strap to protect trees and your rope.
Viper V3 Winch Specifications
- Motor: 12V DC sealed permanent magnet
- Gear train: 3-stage planetary metal gears
- Brake: automatic, 100% load holding
- Clutch: sliding ring gear
- Wiring: 6 gauge; tie rods, fairlead hardware and motor terminals are stainless steel
- Sealing: IP67 waterproof rating per Moto Alliance; corrosion-resistant aluminum housing
- Wireless remote with its own frequency, plus a rocker handlebar switch and dash switch
- Manufacturer warranty: limited one year on the winch, 6 months on the rope
- V3 4,500 standard spool: 40 ft x 1/4 in. synthetic rope, 3.0 x 4.875 in. bolt pattern, 13.3 x 4.75 x 4.6 in., 17 lb
- V3 6,000 wide spool: 60 ft x 1/4 in. synthetic rope, 3.0 x 6.6 in. bolt pattern, 15 x 4.75 x 4.6 in., 18 lb
Fitment
| Year | Make | Model |
|---|---|---|
| 2020-2026 | Kawasaki | KRX 1000 (all models) |
What's in the Box
- Viper MA11835 winch mount plate with mounting hardware and instructions
- Viper V3 winch in your choice of rope color
- 40 ft or 60 ft x 1/4 in. synthetic rope, aluminum hawse fairlead and clevis hook
- Wireless remote, rocker handlebar switch and dash switch
- Contactor and wiring, hand saver strap, and installation hardware
Who It's For and What Pairs Well
This kit is for KRX owners who tackle rocks, ruts and creek crossings. Browse Kawasaki KRX recovery gear and KRX bumpers to finish the front end.
Installation Notes
Install the MA11835 plate with the hardware and steps in the PDF. Plan the cable route to the battery first. Re-spool the rope under light tension after install.
