Polaris RZR 900 / 1000 / XP 1000 / Trail Viper V3 4,500 lb Winch Kit with Mount Plate & Wireless Remote

The MA11906 mount covers one of the widest spreads of RZRs out there, from the 2014 RZR XP 1000 to the 2023 RZR Trail. This kit pairs that plate with the Viper V3 4,500 lb standard spool winch, a good size for a two-seat sport machine. You get the mount, winch, rope, remote and switches in one order.

Built for the RZR Family

• Fits RZR 900, RZR 1000, RZR 1000 S, RZR XP 1000 and RZR Trail 900/1000 across the years in the fitment table.
• V3 4,500 lb standard spool keeps the weight down at 17 lb for the winch.
• Compact V3 body with recessed terminals fits tight RZR front ends.
• Choose black, blue or red synthetic rope to match your car.
• Wireless remote plus handlebar and dash switches.

Before Your First Pull

• Spool out all but a few wraps of rope and re-spool it under light load so the layers seat tight.
• Anchor to a tree strap, not a bare trunk, and keep bystanders clear of the rope line.
• Run the engine while winching so the battery is not doing all the work.

What to Know Before You Order

• Check the year and model of your RZR against the fitment table; the 2024-up RZR XP 1000 is not listed for this mount, and neither is the RZR XP 4 1000.
• The MA11906 plate takes the standard 3 x 4-7/8 in. pattern only. That is why this kit is offered with the 4,500 lb V3 and not the wide-spool 6,000.
• If your RZR has an aftermarket front bumper, it may already have a winch mount. Send us a photo and we will tell you if you need this plate.
• The extended wiring pack is two 12 ft leads, red and black, in the metric equivalent of 5 gauge wire.

Viper V3 Winch Specifications

• Motor: 12V DC sealed permanent magnet
• Gear train: 3-stage planetary metal gears
• Brake: automatic, 100% load holding
• Clutch: sliding ring gear
• Wiring: 6 gauge; tie rods, fairlead hardware and motor terminals are stainless steel
• Sealing: IP67 waterproof rating per Moto Alliance; corrosion-resistant aluminum housing
• Wireless remote with its own frequency, plus a rocker handlebar switch and dash switch
• Manufacturer warranty: limited one year on the winch, 6 months on the rope
• V3 4,500 standard spool: 40 ft x 1/4 in. synthetic rope, 3.0 x 4.875 in. bolt pattern, 13.3 x 4.75 x 4.6 in., 17 lb

Fitment

Note: This mount takes the standard bolt pattern only, so this kit comes with the V3 4,500 lb standard spool winch.

Note: Moto Alliance recommends an extended wire kit to reach the battery on the RZR 900 and 1000. You can add it in the options above.

What's in the Box

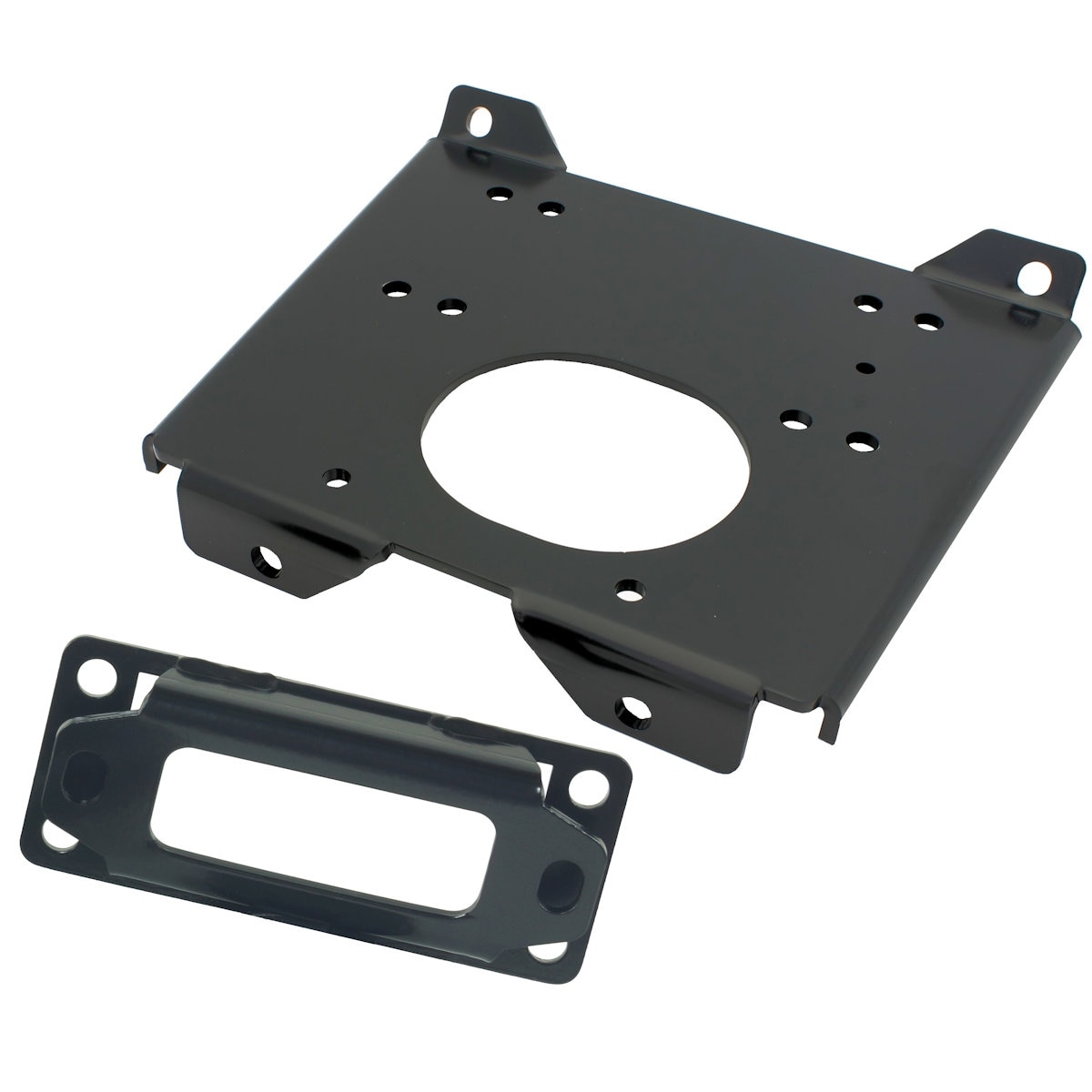

• Viper MA11906 winch mount plate with mounting hardware and instructions
• Viper V3 winch in your choice of rope color
• 40 ft x 1/4 in. synthetic rope, aluminum hawse fairlead and clevis hook
• Wireless remote, rocker handlebar switch and dash switch
• Contactor and wiring, hand saver strap, and installation hardware

Who It's For and What Pairs Well

This kit is for RZR owners who ride alone or in remote country and want self-recovery. Find it in RZR XP 1000 winches and recovery, RZR 900 recovery gear, RZR 1000 recovery gear and RZR Trail recovery gear, and pair it with a RZR XP 1000 bumper.

Installation Notes

Bolt the MA11906 plate to the RZR using the included hardware and the PDF. On RZR 900 and 1000 models, Moto Alliance recommends extending the battery leads, which is why the wiring pack is offered as an add-on. Check that the remote receiver and contactor are mounted away from heat and water spray.

• Moto Alliance MA11906 winch mount installation instructions (PDF)
